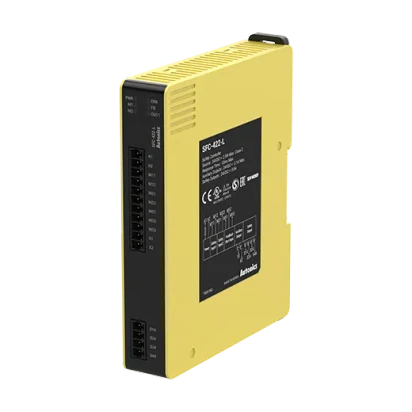

Autonics SFC Series SFC-422

List Price:

$248.00

/each

Product Description

Autonics Safety Controllers, model SFC-422, from the SFC Series product line.

Power supply: 24VDC@(=)
Allowable voltage range: 85 to 110% of rated voltage
Power consumption: 2.5W
Input: ON: ≥11 VDC@(=) ≥ 5mA, OFF: ≤ 5VDC@(=) ≤ 1mA
Cable: ≤ 100m (≤ 100Ω, ≤ 10nF)
Safety output: P channel FET
Instantaneous: 4 ×
off-delay: -
Time accuracy: -
Load current: Below 2-point output: ≤ DC 1A, Over 3-point output: ≤ DC 0.8A
Leakage current: ≤ 0.1mA
Sub output: 2 × PNP transistor: X1, X2 (error)
Logical AND connections: No. of connections: max. 4 units, no. of total connections: max. 20 units, No. of layers: max. 5 layers, cable length: max. ≤ 100m
SFN connections: -
International standards: IEC/EN 61508 (SIL3), IEC/EN 62061 (SILCL3), IEC/EN 60947-5-1, EN ISO 13849-1 (Category 4, PLe), UL listed E249635
Weight: Approx. 70g (approx. 120g)
