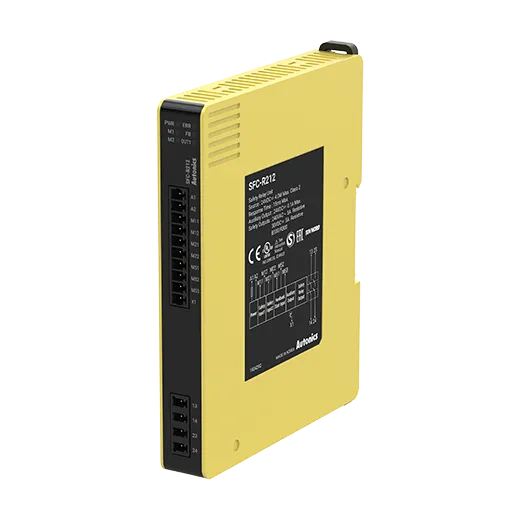

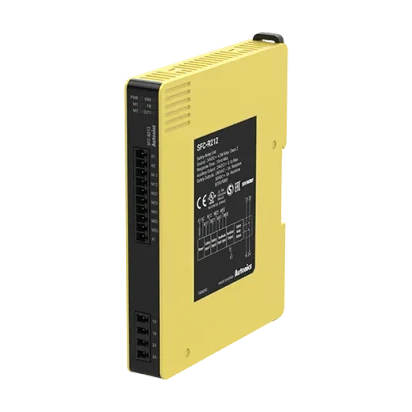

Autonics SFC-R Series SFC-R212

List Price:

$151.00

/each

Product Description

Autonics Safety Controllers, model SFC-R212, from the SFC-R Series product line.

Power supply: 24VDC@(=)
Allowable voltage range: 85 to 110% of rated voltage
Power consumption: 4.0W
Input: ON: ≥11 VDC@(=) ≥ 5mA, OFF: ≤ 5VDC@(=) ≤ 1mA
Input time: ≥ 50ms, feedback start (manual) : ≥ 100ms
Cable: ≤ 100m (≤ 100Ω, ≤ 10nF)
Safety output: Relay (A contact)
Instantaneous: 2 ×
off-delay: -
Time accuracy: -
Capacity: 240 VAC~ 5A, 30 VDC@(=) 5A
Life expectancy: Mechanical: ≥ 10,000,000 operations, Malfunction: ≥ 50,000 operations
Contact resistance: ≤ 100mΩ
Inductive load switching: IEC60947-5-1: AC-15 (230 V/2 A), DC-13 (24 V/1.5 A), UL508: B300/R300
Conditional short circuit current: 100A
Sub output: 1 × PNP transistor: X1
Load current: Max. 100mA
Leakage current: ≤ 0.1mA
Expansion units connections: -
International standards: IEC/EN 61508 (SIL3), IEC/EN 62061 (SILCL3) IEC/EN 60947-5-1, EN ISO 13849-1 (Category 4, PLe) UL listed E249635
Weight: Approx. 80g (approx. 130g)
