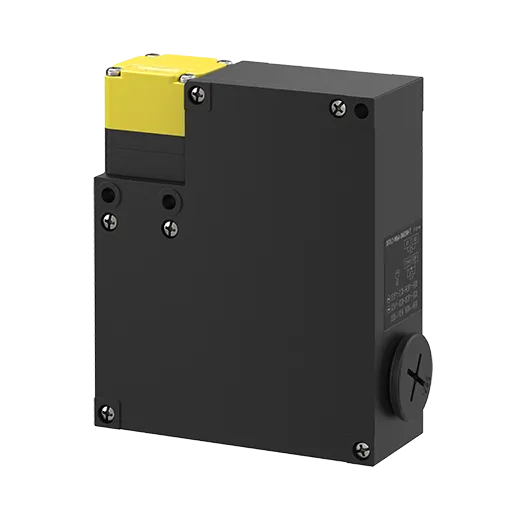

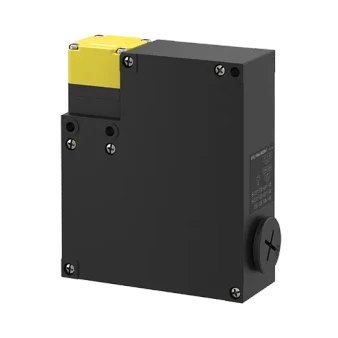

Autonics Safety Door Switches, model SFDL2-PS6C-BG1/2-T, from the SFDL2 Series product line.
Specifications
- Directing opening force: Min. 80N
- Directing opening distance: Min. 10mm
- Locking pullout strength: Min. 1,300N
- Operating speed: 0.05 to 1m/s
- Operating frequency: Max. 20/min
- Life cycle_Mechanical: Min. 1,000,000 operations (20/min)
- Indicator: Solenoid status or contact status (orange, depending on connection)
- Vibration_Malfunction: 0.35mm single amplitude at frequency of 10 to 55Hzin each X,Y,Z direction for 10 min
- Shock: 1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times
- Shock_Malfunction: 80m/s² (approx. 8G) in each X, Y, Z direction for 3 times
- Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
- Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
- Protection structure: IP67(IEC standerd, except head)
- Material: Head: zinc or PA, case: PA
- Weight: ≈ 400 g (≈ 490 g)
- Rated load voltage & current: Resistive load: 6 A/250 VAC~, 0.6 A/250 VDC@(=)</br>Inductive load (IEC): AC-15 3 A/240 VAC~, DC-13 0.27 A/250 VDC@(=)</br>Inductive load (UL): A300, Q300
- Dielectric strength_Between the terminals of same polarity: 2.5kV
- Dielectric strength_Between the terminals of different polarity: 4 kV
- Dielectric strength_Between each terminal and non-live part: 6 kV
- Insulation resistance: 100MΩ or more (500VDC megger basis)
- Contact resistance: ≤ 100 mΩ
- Life cycle_Electrical: ≥ 100,000 operations (250 VAC~/6 A)
- Conditional short circuit current: 100A
- Rated voltage: 24 VDC@(=), class 2
- Current consumption: Supplying power: 0.26A</br>Normal: max. 0.2A (approx. 3 seconds after supplying power)
- Insulation class: Class E
