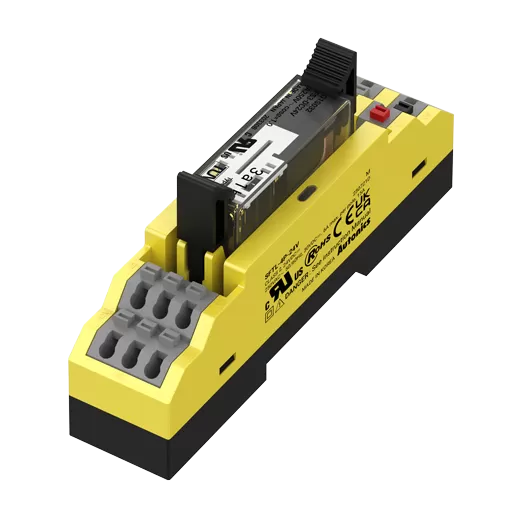

Autonics SFT Series SFTL-4P-24V-3A1B

List Price:

$33.00

/each

Product Description

Autonics Safety I/o Terminal Blocks, model SFTL-4P-24V-3A1B, from the SFT Series product line.

Number of pole: 4
Applied relay: SFS2-DC24V: 2A2B, SFS3-DC24V: 3A1B
Rated voltage: 24VDC@(=)±10%
Rated load voltage: 250 VAC~ 50/60 Hz, 30 VDC@(=)
Continuous current: 6A
Indicator: Operation indicator: green
Terminal type: Screwless
Crimp terminal connection tensile strength: -
Tightening torque: -
Stripped wire length: 8 to 10 mm
Insulation resistance: ≥ 1,000 MΩ (500VDC@(=) megger)
Dielectric strength_Between coil-contacts: 4,000 VAC~ 50/60 Hz for 1 minute
Dielectric strength_Between different poles contact: 2,500 VAC~ 50/60 Hz for 1 minute
Dielectric strength_Between same contacts: 2,500 VAC~ 50/60 Hz for 1 minute
Vibration: 0.75 mm amplitude at frequency 10 to 55 Hz in each X, Y, Z direction for 2 hours
Shock: 300 m/s² (≈ 30 G) in each X, Y, Z direction for 3 times
Ambient temperature: -25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation)
Ambient humidity: 25 to 85 % RH, storage: 25 to 85 % RH (no freezing or condensation)
Protection structure: IP20(IEC standard)
Material: CASE, BASE: PC Terminal: PA66, COPPER, STAINLESS STEEL
Unit weight (packaged weight): ≈ 39.8 g (≈ 88 g)
