Autonics SPA Series SPA-030-12

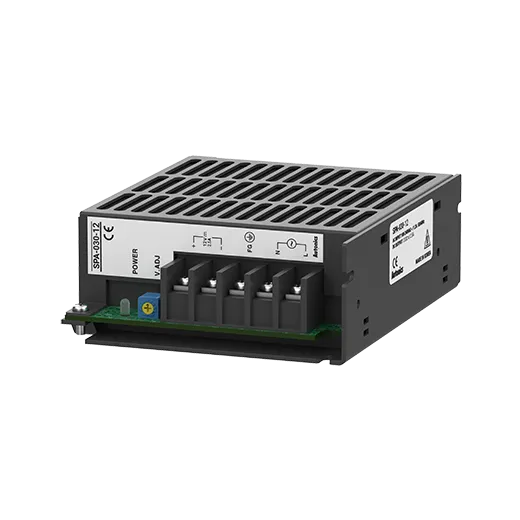

Autonics SPA Series SPA-030-12

Part Number #

AUT1054229

Autonics SPA Series SPA-030-12

List Price:

$110.00

/each

Product Description

Autonics Smps, model SPA-030-12, from the SPA Series product line.

Specifications

Output power: 30W
Input Voltage: 100-240VAC~ 50/60Hz
Permissible voltage: 85-264VAC~50/60Hz
Output_Voltage: 12VDC @(=)
Output_Current: 2.5A
Mounting type: Using Bolts
Protection: Over-Current,Inrush Current,Output Short-Circuit
Input_Frequency: 50/60Hz
Input_Efficiency: Min. 74%
Input_Current consumption: Max. 1.0A
Output type_Voltage adjustment range: ±5%
Output type_Input fluctuation ratio: Max. ±0.5%
Output type_Load fluctuation ratio: Max. ±1%
Environment_Ambient temperature: -10 to 40℃
Environment_Ambient humidity: 25 to 85%RH, storage: 25 to 90%RH
Weight: Approx. 350g

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

Autonics Smps, model SPA-030-12, from the SPA Series product line.

Specifications

Output power: 30W
Input Voltage: 100-240VAC~ 50/60Hz
Permissible voltage: 85-264VAC~50/60Hz
Output_Voltage: 12VDC @(=)
Output_Current: 2.5A
Mounting type: Using Bolts
Protection: Over-Current,Inrush Current,Output Short-Circuit
Input_Frequency: 50/60Hz
Input_Efficiency: Min. 74%
Input_Current consumption: Max. 1.0A
Output type_Voltage adjustment range: ±5%
Output type_Input fluctuation ratio: Max. ±0.5%
Output type_Load fluctuation ratio: Max. ±1%
Environment_Ambient temperature: -10 to 40℃
Environment_Ambient humidity: 25 to 85%RH, storage: 25 to 90%RH
Weight: Approx. 350g
