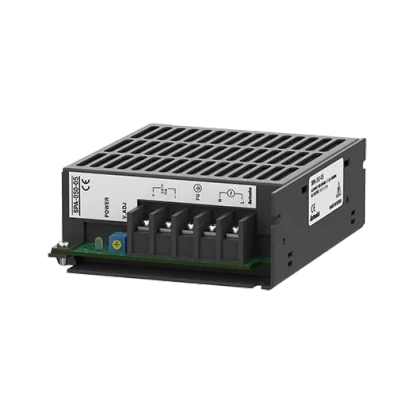

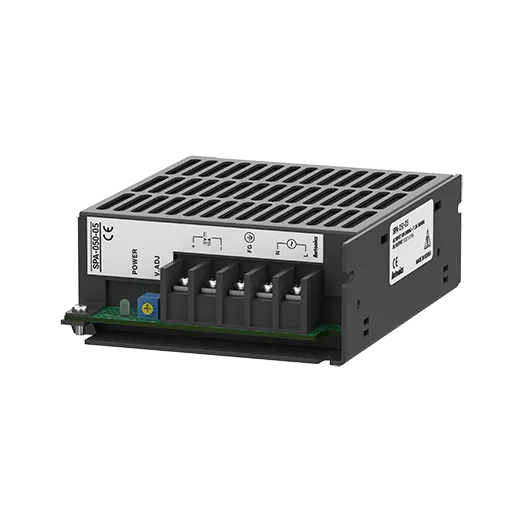

Autonics SPA Series SPA-050-05

Autonics SPA Series SPA-050-05

Part Number #

AUT1054232

Autonics SPA Series SPA-050-05

List Price:

$131.00

/each

Product Description

Autonics Smps, model SPA-050-05, from the SPA Series product line.

Specifications

Output power: 50W
Input Voltage: 100-240VAC~ 50/60Hz
Permissible voltage: 85-264VAC~50/60Hz
Output_Voltage: 5VDC @(=)
Output_Current: 10A
Mounting type: Using Bolts
Protection: Over-Current,Inrush Current,Output Short-Circuit
Input_Frequency: 50/60Hz
Input_Efficiency: Min. 67%
Input_Current consumption: Max. 1.6A
Output type_Voltage adjustment range: ±5%
Output type_Input fluctuation ratio: Max. ±0.5%
Output type_Load fluctuation ratio: Max. ±2%
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 70℃
Environment_Ambient humidity: 25 to 85%RH, storage: 25 to 90%RH
Weight: Approx. 350g
