Autonics SPB Series SPB-015-12

List Price:

$49.00

/each

Product Description

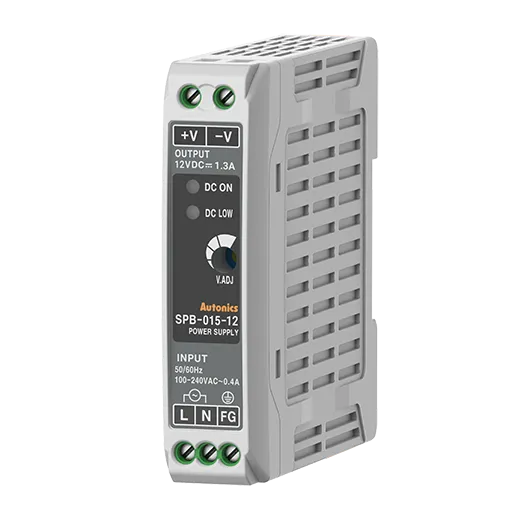

Autonics Smps, model SPB-015-12, from the SPB Series product line.

Output power: 15.6W
Input Voltage: 100-240VAC~ 50/60Hz
Permissible voltage: 85-264VAC~ 50/60Hz, 120-370VDC @(=)
Output_Voltage: 12VDC @(=)
Output_Current: 1.3A
Mounting type: DIN Rail
Protection: Over-Current/Inrush Current/Output Short-Circuit/Output Low-Voltage Indicate
Input_Frequency: 50/60Hz
Input_Efficiency_100VAC~: 0.8
Input_Efficiency_240VAC~: 0.79
Input_Power factor: -
Input_Current consumption_100VAC~: 0.35A
Input_Current consumption_240VAC~: 0.19A
Output type_Voltage adjustment range: Max. ±10%
Output type_Input fluctuation ratio: Max. ±0.5%
Output type_Load fluctuation ratio: Max. ±1%
Output type_Ripple&Ripple noise: Max. ±1%
Protection structure: IP20(IEC standard)
Environment_Ambient temperature: -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
Environment_Ambient humidity: 25 to 85%RH, storage: 25 to 90%RH
Weight: Approx. 202g(approx. 129g)
