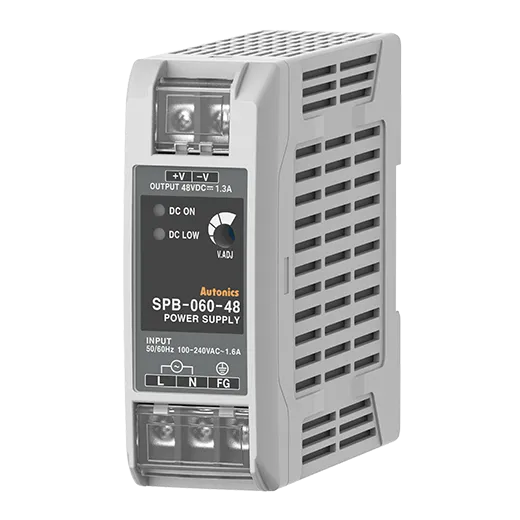

Autonics SPB Series SPB-060-48

List Price:

$67.00

/each

Product Description

Autonics Smps, model SPB-060-48, from the SPB Series product line.

Output power: 62.4W
Input Voltage: 100-240VAC~ 50/60Hz
Permissible voltage: 85-264VAC~ 50/60Hz, 120-370VDC @(=)
Output_Voltage: 48VDC @(=)
Output_Current: 1.3A
Mounting type: DIN Rail
Protection: Over-Current/Inrush Current/Output Short-Circuit/Output Low-Voltage Indicate
Input_Frequency: 50/60Hz
Input_Efficiency_100VAC~: 0.85
Input_Efficiency_240VAC~: 0.87
Input_Power factor: -
Input_Current consumption_100VAC~: 1.19A
Input_Current consumption_240VAC~: 0.64A
Output type_Voltage adjustment range: Max. ±5%
Output type_Input fluctuation ratio: Max. ±0.5%
Output type_Load fluctuation ratio: Max. ±1%
Output type_Ripple&Ripple noise: Max. ±1%
Protection structure: IP20(IEC standard)
Environment_Ambient temperature: -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
Environment_Ambient humidity: 25 to 85%RH, storage: 25 to 90%RH
Weight: Approx. 347g(approx. 274g)
