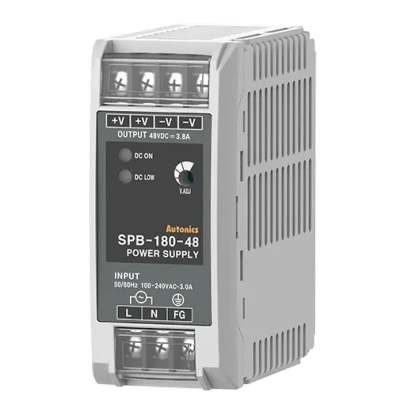

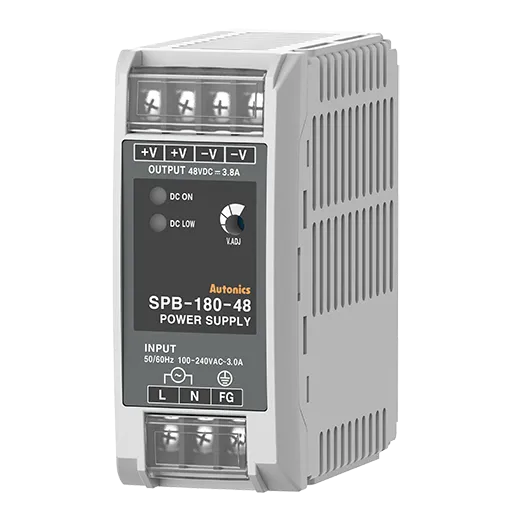

Autonics SPB Series SPB-180-48

List Price:

$146.00

/each

Product Description

Autonics Smps, model SPB-180-48, from the SPB Series product line.

Output power: 182.4W
Input Voltage: 100-240VAC~ 50/60Hz
Permissible voltage: 85-264VAC~ 50/60Hz, 120-370VDC @(=)
Output_Voltage: 48VDC @(=)
Output_Current: 3.8A
Mounting type: DIN Rail
Protection: Over-Current/Over-Voltage/Inrush Current/Output Short-Circuit/Remote Control/Output Low-Voltage Indicate/Power Factor Correction/Terminal Cover
Input_Frequency: 50/60Hz
Input_Efficiency_100VAC~: 0.89
Input_Efficiency_240VAC~: 0.92
Input_Power factor: Min. 0.9
Input_Current consumption_100VAC~: 2.04A
Input_Current consumption_240VAC~: 0.84A
Output type_Voltage adjustment range: Max. ±5%
Output type_Input fluctuation ratio: Max. ±0.5%
Output type_Load fluctuation ratio: Max. ±1%
Output type_Ripple&Ripple noise: Max. ±1%
Protection structure: IP20(IEC standard)
Environment_Ambient temperature: -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
Environment_Ambient humidity: 25 to 85%RH, storage: 25 to 90%RH
Weight: Approx. 609g(approx. 505g)
