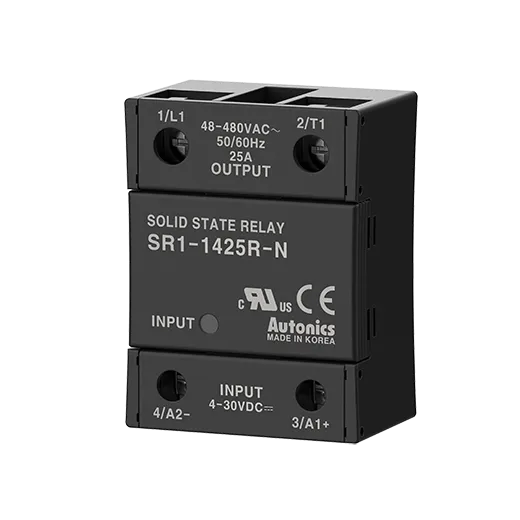

Autonics SR1 Series SR1-1425R-N

List Price:

$36.00

/each

Product Description

Autonics Ssr, model SR1-1425R-N, from the SR1 Series product line.

Control phase: Single-phase
Heatsink: -
Mounting type: Panel
Rated input voltage: 4-30VDC @(=)
Rated load voltage: 48-480VAC~
Dielectric strength: 2500VAC~ 50/60Hz 1 min (Input-Output, Input/Output-Case)
Rated load current: 25A
Function: Random turn-on
Environment_Ambient temperature: -30 to 80℃, storage: -30 to 100℃(The rated load current capacity is different depending on ambient temperature. Refer to '▣ SSR Derating Curve'.)
Environment_Ambient humidity: 45 to 85% RH, storage: 45 to 85% RH
Weight: Approx. 111g(approx. 73g)
