Autonics SRH1 Series SRH1-2415-N

List Price:

$33.00

/each

Product Description

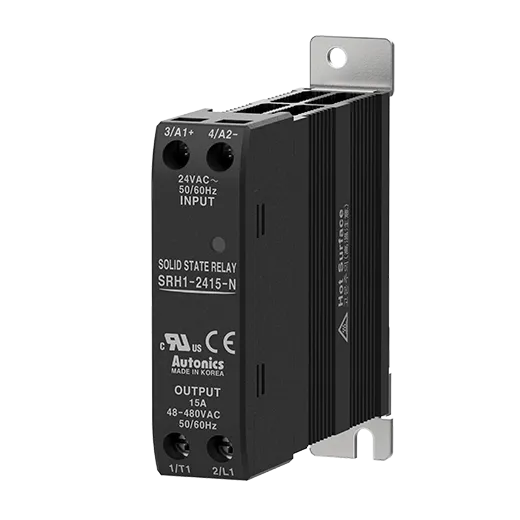

Autonics Ssr, model SRH1-2415-N, from the SRH1 Series product line.

Control phase: Single-phase
Heatsink: Heatsink
Mounting type: Panel, DIN rail
Rated input voltage: 24VAC~
Rated load voltage: 48-480VAC~
Dielectric strength: 2500VAC~ 50/60Hz 1 min (Input-Output, Input/Output-Case)
Rated load current: 15A
Function: Zero cross turn-on
Environment_Ambient temperature: -30 to 80℃, storage: -30 to 100℃(The rated load current capacity is different depending on ambient temperature. Refer to '▣ SSR Derating Curve'.)
Environment_Ambient humidity: 45 to 85% RH, storage: 45 to 85% RH
Weight: Approx. 298g(approx. 225g)
