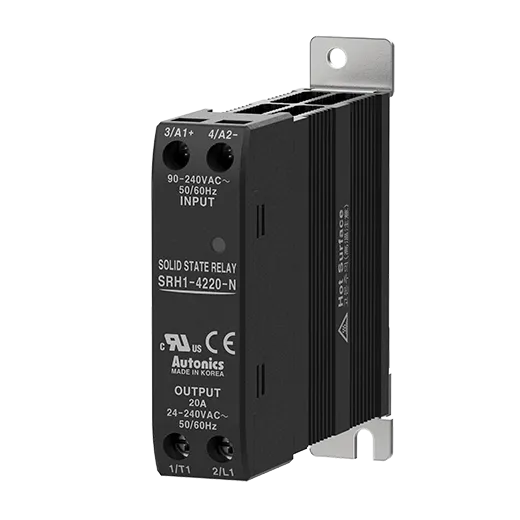

Autonics SRH1 Series SRH1-4220-N

List Price:

$39.00

/each

Product Description

Autonics Ssr, model SRH1-4220-N, from the SRH1 Series product line.

Control phase: Single-phase
Heatsink: Heatsink
Mounting type: Panel, DIN rail
Rated input voltage: 90-240VAC~
Rated load voltage: 24-240VAC~ (50/60Hz)
Dielectric strength: 2500VAC~ 50/60Hz 1 min (Input-Output, Input/Output-Case)
Rated load current: 20A
Function: Zero cross turn-on
Environment_Ambient temperature: -30 to 80℃(in case of the rated input voltage 90-240VAC~: -20 to 70℃), storage: -30 to 100℃</br>(The rated load current capacity is diferent depending on ambient temperature. Refer to '▣ SSR Derating Curve'.)
Environment_Ambient humidity: 45 to 85% RH, storage: 45 to 85% RH
Weight: Approx. 298g(approx. 225g)
