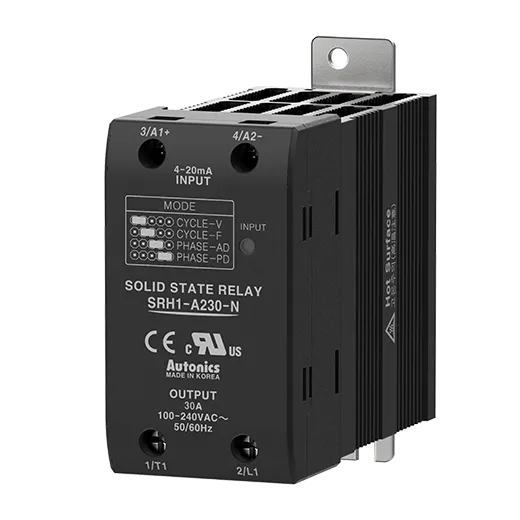

Autonics SRH1 Series SRH1-A230-N

List Price:

$98.00

/each

Product Description

Autonics Ssr, model SRH1-A230-N, from the SRH1 Series product line.

Control phase: Single-phase
Heatsink: Heatsink
Mounting type: Panel, DIN rail
Rated input current: 4-20mA
Rated load voltage: 100-240VAC~ (50/60Hz)
Dielectric strength: 4000VAC 50/60Hz for 1 min (input-output, input/output-case)
Rated load current: 30A
Operation mode: Cycle control(variable cycle/fi xed cycle)Phase control(phase equality divisionmethod/power equality division method)
Environment_Ambient temperature: -20 to 70℃, storage: -20 to 100℃(The rated load current capacity is different depending on ambient temperature. Refer to '▣ SSR Derating Curve'.)
Environment_Ambient humidity: 45 to 85% RH, storage: 45 to 85% RH
Weight: Approx. 490g(Approx. 410g)
