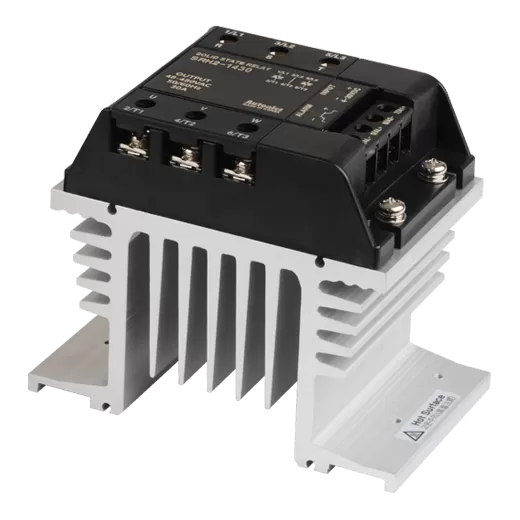

Autonics SRH2/SRH3 Series SRH2-1430

List Price:

$151.00

/each

Product Description

Autonics Ssr, model SRH2-1430, from the SRH2/SRH3 Series product line.

Control phase: 2-Phase
Heatsink: Heatsink
Mounting type: Panel, DIN rail
Rated input voltage: 4-30VDC @(=)
Rated load voltage: 48-480VAC~
Dielectric strength: 2,500VAC~
Rated load current: 30A
Function: Zero cross turn-on
Environment_Ambient temperature: -30 to 80℃(in case of the rated input voltage 90-240VAC~: -30 to 70℃), </br>Storage: -30 to 100℃( The rated load current capacity is different depending on ambient temperature. Refer to '▣ SSR Derating Curve'.)
Environment_Ambient humidity: 45 to 85% RH, storage: 45 to 85% RH
Weight: approx. 896g(approx. 686g)
