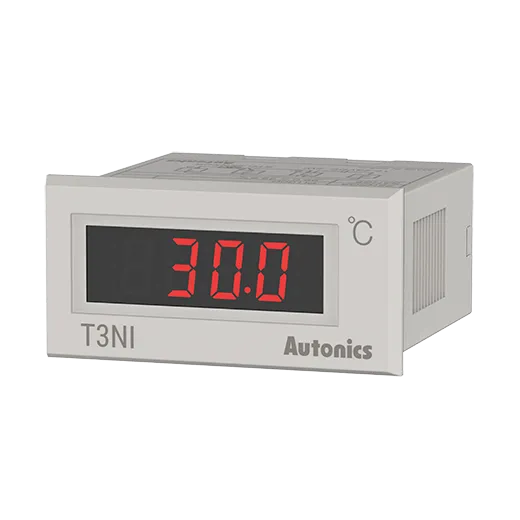

Autonics T3/T4 (Indicator) Series T3NI-NXNP1C-N

Autonics T3/T4 (Indicator) Series T3NI-NXNP1C-N

Part Number #

AUT1052000

Autonics T3/T4 (Indicator) Series T3NI-NXNP1C-N

List Price:

$78.00

/each

Product Description

Autonics Temperature Controllers, model T3NI-NXNP1C-N, from the T3/T4 (Indicator) Series product line.

Specifications

Display method: 3-digit 7-segment LED
Input specification: RTD: DPt100Ω
Sampling cycle: 100ms
Control output: Indicator
Display range: 0 to 99.9℃
Power supply: 12-24VDC @(=)
Protection structure: -
Display accuracy_RTD: •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit</br>•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Display accuracy_Thermocouple: -
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 48g(approx. 25g)

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

Autonics Temperature Controllers, model T3NI-NXNP1C-N, from the T3/T4 (Indicator) Series product line.

Specifications

Display method: 3-digit 7-segment LED
Input specification: RTD: DPt100Ω
Sampling cycle: 100ms
Control output: Indicator
Display range: 0 to 99.9℃
Power supply: 12-24VDC @(=)
Protection structure: -
Display accuracy_RTD: •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit</br>•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Display accuracy_Thermocouple: -
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 48g(approx. 25g)

Downloadable Materials
