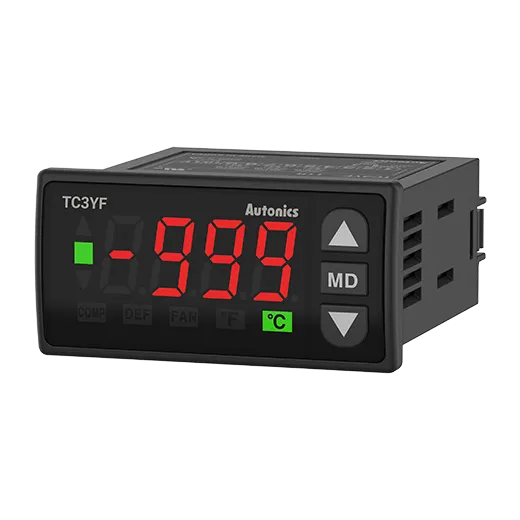

Autonics TC3YF Series TC3YF-11R

List Price:

$77.00

/each

Product Description

Autonics Temperature Controllers, model TC3YF-11R, from the TC3YF Series product line.

Display method: 3-digit 7-segment LED
Control method: Cooling
Input specification: Thermistor(NTC)※2: 5kΩ
Sampling cycle: 500ms
Input range: -40.0~99.9℃</br>-40.0~212℉
Control output_Compressor: Relay(250VAC~ 5A)
Control output_Defrost: Relay(250VAC~ 5A)
Control output_Evaporator-fan: -
Power supply: 12-24VDC @(=)
Protection structure: IP65(front panel)
Display accuracy: •At room temp. (23 ±5℃): (PV ±0.5% or 1℃, select the higher one) rdg ±1digit</br>•Out of room temp. range: (PV ±0.5% or 1℃, select the higher one) rdg ±1℃
Hysteresis(adjustable sensitivity): 0.5 to 5.0℃, 2 to 50℉ variable
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 229g (approx. 143g)
