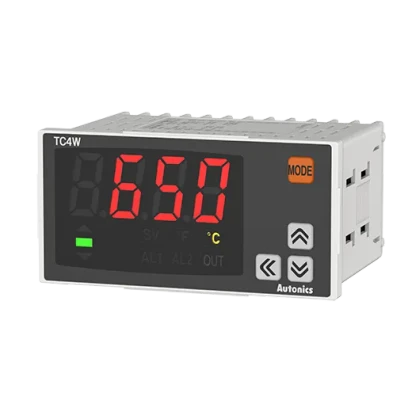

Autonics TC Series TC4W-N2N

List Price:

$96.00

/each

Product Description

Autonics Temperature Controllers, model TC4W-N2N, from the TC Series product line.

Size: DIN W96×H48mm
Display method: 4-digit 7-segment LED
Control method: ON/OFF, P, PI, PD, PID
Input specification: Thermocouple: K(CA), J(IC), L(IC)RTD: DPt100Ω, Cu50Ω
Sampling cycle: 100ms
Control output: Indicator
Option output: -
Power supply: 24VAC~ 50/60Hz, 24-48VDC @(=)
Protection structure: -
Display accuracy_RTD: •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Display accuracy_Thermocouple: •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Hysteresis(adjustable sensitivity): 1 to 100℃/℉(0.1 to 50.0℃/℉) variable
Proportional band: 0.1 to 999.9℃/℉
Integral time: 0 to 9999 sec
Derivative time: 0 to 9999 sec
Control period: 0.5 to 120.0 sec
Manual reset: 0.0 to 100.0%
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV)
Weight: Approx. 194g(approx. 122g)
