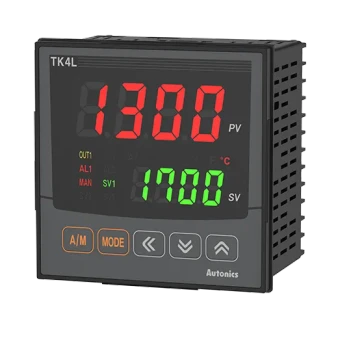

Autonics Temperature Controllers, model TK4L-14CN, from the TK Series product line.
Specifications
- Display method: 4-digit 7-segment LED
- Control method: ON/OFF, P, PI, PD, PID
- Input specification: Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II</br>RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω</br>Analog: 0-100mV, 0-5V, 1-5V, 0-10V</br>0-20mA, 4-20mA
- Sampling cycle: 50ms
- Control output 1: Current(DC0/4-20mA) or SSR drive(11VDC @(=)) [ON/OFF]
- Control output 2: -
- Option input: CT, Digital(DI-1/2)
- Option output: Alarm 1
- Power supply: 100-240VAC~ 50/60Hz
- Protection structure: IP65(front panel)
- Display accuracy_RTD: •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit</br>•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
- Display accuracy_Thermocouple: •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit</br>•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
- Display accuracy_Analog: •At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit</br>•Out of range of room temperature: ±0.5℃% F.S. ±1-digit
- Display accuracy_CT input: ±5% F.S. ±1-digit
- Hysteresis(adjustable sensitivity): RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉) variable Analog: 1 to 100-digit
- Proportional band: 0.1 to 999.9℃/℉(0.1 to 999.9%)
- Integral time: 0 to 9999 sec
- Derivative time: 0 to 9999 sec
- Control period: Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec
- Manual reset: 0.0 to 100.0%
- Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
- Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
- Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV)
- Weight: Approx. 294g(approx. 198g)
