Autonics TM Series TM2-22RB
Part Number #
AUT1051895

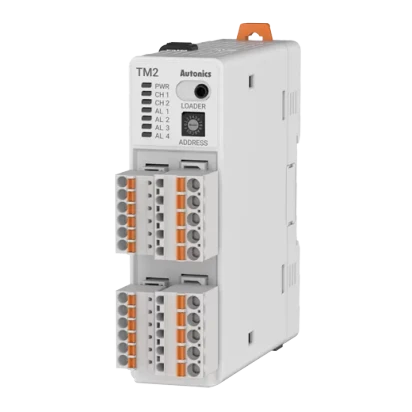

Autonics TM Series TM2-22RB

List Price:
$327.00
/each
Product Description

Autonics Temperature Controllers, model TM2-22RB, from the TM Series product line.

Specifications

  • Number of input channels: 2-channel
  • Power supply: 24VDC @(=) ±10%
  • Power consumption: ≤ 5 W (for Max. load)
  • Sampling cycle: 50ms(2-CH synchronous sampling)
  • Option input: CT, Digital(DI-1/2)
  • Alarm output: 250 VAC~ 3A 1a
  • RS485 Comm.: Modbus ASCII / RTU
  • Control output: 250 VAC~ 3A 1a, 30 VDC@(=) 3A 1a
  • Hysteresis: 1 to 100 (0.1 to 100) ℃/℉
  • Display method: Non-display
  • Control method: ON/OFF, P, PI, PD, PID
  • Proportional band: 0.1 to 999.9℃/℉
  • Integral time: 0 to 9999 sec
  • Derivative time: 0 to 9999 sec
  • Control period: 0.1 to 120.0 sec
  • Manual reset: 0.0 to 100.0%
  • Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV)
  • Weight_Basic module: Approx. 217g(approx. 152g)
  • Weight_Expansion module: -

Downloadable Materials
