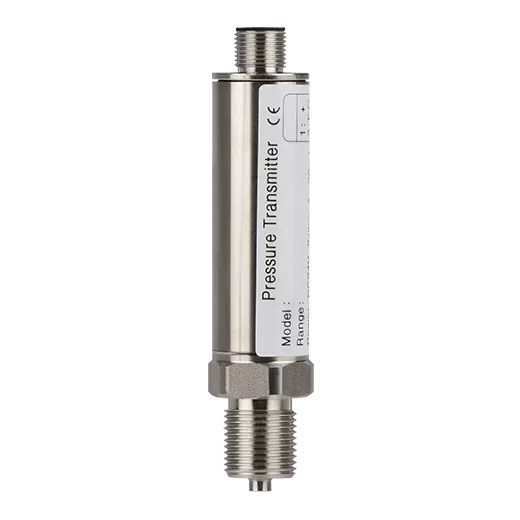

Autonics TPS20 Series TPS20-A38P2-00

Autonics TPS20 Series TPS20-A38P2-00

Part Number #

AUT1049222

Autonics TPS20 Series TPS20-A38P2-00

List Price:

$256.00

/each

Product Description

Autonics Pressure Transmitters, model TPS20-A38P2-00, from the TPS20 Series product line.

Specifications

Measured materials: Liquid, gas, oil (except corrosive environment of stainless steel type 316)
Power supply: 15-35VDC @(=)
Linearity: ±0.3％ F.S. (-10 to 50℃), ±0.5％F.S. (50 to 70℃)
Hysteresis: ±0.3% F.S.
Environment_Ambient temperature: -10 to 70℃, storage: -10 to 70℃
Environment_Ambient humidity: 5 to 95% RH, storage: 5 to 95% RH
Material: Sealing, diaphragm, connection: stainless steel type 316, O-ring: fluoro rubber
Measurement pressure: Absolute pressure
Connector: Connector cable type
Weight: Approx. 350g (approx. 320g) (based on head type)
Pressure range: 0 to 35kgf/cm²
Pressure port: G1/2(with adapter)

Downloadable Materials
