Autonics TPS30 Series TPS30-G2BAG4-00

List Price:

$181.00

/each

Product Description

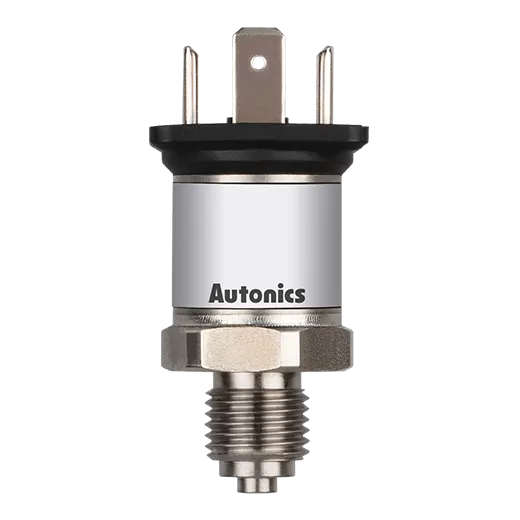

Autonics Pressure Transmitters, model TPS30-G2BAG4-00, from the TPS30 Series product line.

Measured materials: Liquid, gas, oil (lnappropriate to corrosion environment for stainless steel 316L)
Power supply: 11-36VDC @(=) (ripple P-P: max. 10%)
Accuracy: Max. ±0.5% F.S. (including linearity, hysteresis, reproducibility)
Linearity: Max. ±0.2% F.S.
Hysteresis: Max. ±0.2% F.S.
Environment_Ambient temperature: -40 to 85℃, storage: -40 to 125℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Environment_Fluid temperature: -40 to 125℃
Protection structure: IP65(IEC standard)
Material: Stainless steel 316L (head part of head type: aluminium diecasting), connector: Polybutylene terephthalate G30,</br>water-proof rubber: silicon
Measurement pressure: Gauge pressure
Connection type: DIN43650-A connector type
Pressure range: 0 to 20MPa
Weight: approx. 130g (approx. 50g)
Output specification: Current output(DC4-20mA)
Pressure port: G1/4(PF)(EN837)

Write a Review

Brand:

Autonics Pressure Transmitters, model TPS30-G2BAG4-00, from the TPS30 Series product line.

Measured materials: Liquid, gas, oil (lnappropriate to corrosion environment for stainless steel 316L)
Power supply: 11-36VDC @(=) (ripple P-P: max. 10%)
Accuracy: Max. ±0.5% F.S. (including linearity, hysteresis, reproducibility)
Linearity: Max. ±0.2% F.S.
Hysteresis: Max. ±0.2% F.S.
Environment_Ambient temperature: -40 to 85℃, storage: -40 to 125℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Environment_Fluid temperature: -40 to 125℃
Protection structure: IP65(IEC standard)
Material: Stainless steel 316L (head part of head type: aluminium diecasting), connector: Polybutylene terephthalate G30,</br>water-proof rubber: silicon
Measurement pressure: Gauge pressure
Connection type: DIN43650-A connector type
Pressure range: 0 to 20MPa
Weight: approx. 130g (approx. 50g)
Output specification: Current output(DC4-20mA)
Pressure port: G1/4(PF)(EN837)
