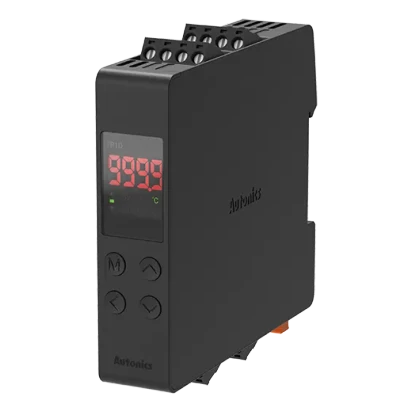

Autonics Temperature Controllers, model TR1D-T4CC, from the TR1D Series product line.
Specifications
- Power supply: 100-240VAC~ 50/60Hz
- Allowable voltage range: 90 to 110% of rated voltage
- Power consumption: Max. 8VA
- Sampling cycle: 50, 100, 250ms
- Input type_RTD: DPt100Ω, Cu50Ω, Nickel120Ω (permissible line resistance max. 5Ω)
- Input type_TC: K(CA), J(IC), L(IC), T(CC), R(PR), S(PR)
- Input type_CT: 0.0-50.0A(primary current measurement range) ※CT ratio=1/1000
- Display accuracy: RTD/Thermocouple: ㆍ At room temperature (23℃ ±5℃): (PV ±0.3% or ±1℃, select the higher one) ±1-digit</br>ㆍ Out of room temperature ranges: (PV ±+H400.5% or ±2℃, select the higher one) ±1-digit
- Display accuracy_CT input: ±5% F.S. ±1-digit
- Control output_Relay: -
- Control output_SSR: Max. 12VDC @(=) ±3V 20mA
- Control output_Current: Selectable DC 4-20mA or DC 0-20mA(load resistance max. 500Ω)
- Option output_Alarm: -
- Option output_Trans.: DC 4 - 20 mA (load resistance: ≤ 500 Ω, output accuracy: ±0.3% F.S.)
- Option output_Comm.: RS485 communication output (Modbus RTU/ASCII method)
- Display method: 7-segment (red) 4-digit
- Control method: ON/OFF, P, PI, PD, PID
- Control output_Hysteresis: Control output: 1 to 100℃/℉ (0.1 to 100.0℃/℉)</br>Alarm output: 1 to 100℃/℉ (0.1 to 50.0℃/℉)
- Proportional band: 0.1 to 999.9℃
- Integral time: 0 to 9999 sec
- Derivative time: 0 to 9999 sec
- Control period: Relay output: 0.5 to 120.0 sec, SSR output: 0.5 to 120.0 sec
- Dielectric strength: Between the charging part and the case : 3,000 VAC~ 50/60 Hz for 1 min
- Vibration: 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
- Relay life cycle_Mechanical: OUT1/2, AL1/2: min. 5,000,000 operations
- Relay life cycle_Electrical: OUT1/2, AL1/2: min. 100,000 (resistance load: 250VAC~ 5A)
- Insulation resistance: 100MΩ or more (500VDC megger basis)
- Insulation type: Double insulation or reinforced insulation (dielectric strength between the charging part and the case: 3 kV)
- Noise immunity: ±2 kV square shaped noise by noise simulator (pulse width: 1 ㎲) R-phase, S-phase
- Memory Protection: ≈ 10 years (non-volatile semiconductor memory type)
- Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
- Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
- Weight: Approx. 194.5g (approx. 123.5g)
