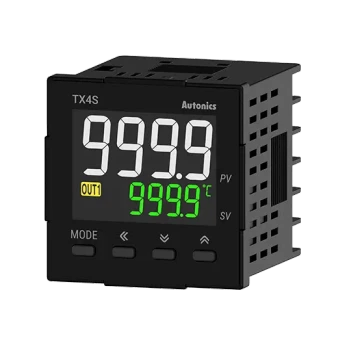

Autonics TX Series TX4S-24R

List Price:

$132.00

/each

Product Description

Autonics Temperature Controllers, model TX4S-24R, from the TX Series product line.

Display method: 4-digit 11-segment LCD
Control method: ON/OFF, P, PI, PD, PID
Input specification: Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)RTD: DPt100Ω, Cu50Ω
Sampling cycle: 50ms
Control output: Relay (250VAC~ 3A, 30VDC @(=) 3A)
Option output: Alarm 1/2
Power supply: 100-240VAC~ 50/60Hz
Protection structure: IP50(front panel)
Display accuracy_RTD: •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
Display accuracy_Thermocouple: •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
Hysteresis(adjustable sensitivity): 1 to 100℃/℉(0.1 to 50.0℃/℉) variable
Proportional band: 0.1 to 999.9℃/℉
Integral time: 0 to 9999 sec
Derivative time: 0 to 9999 sec
Control period: 0.5 to 120.0 sec
Manual reset: 0.0 to 100.0%
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Insulation type: Double insulation (mark: @(INS), dielectric strength between primary circuit and secondary circuit: 3kV)
Weight: Approx. 146.1g(approx. 86.7g)
