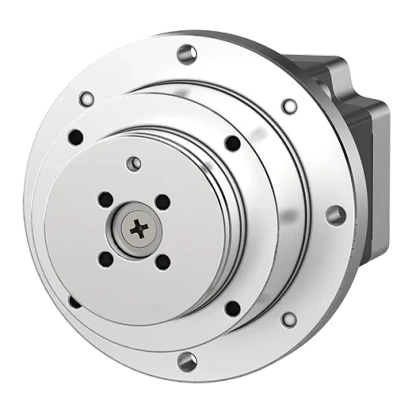

Autonics AK-R Series A35K-M566-R5

List Price:

$579.00

/each

Product Description

Autonics 5-phase Stepper Motors/drivers, model A35K-M566-R5, from the AK-R Series product line.

Basic Step Angle [FULL/HALF]: 0.144º/0.072º
Max. allowable torque: 35kgf.cm
Rotor Moment Of Inertia: 280g·cm²
Winding Resistance: 1.1Ω
Rated current: 1.4A/Phase
Motor length: 93.5mm
Shaft type: Single shaft
Reduction ratio: 0.045138889
Wire connection: Pentagon
Protection structure: IP30
Allowable speed range: 0 to 360rpm
Backlash: ±20'(0.33˚)
ElectroMagnetic brake_Rated excitation voltage: 24VDC @(=)±10%(no-polarity)
ElectroMagnetic brake_Rated excitation current: 0.33A
ElectroMagnetic brake_Static friction torque: Min. 8kgf.cm
ElectroMagnetic brake_Rotation part inertia moment: 29×10@(^-7)kgf.cm²
ElectroMagnetic brake_B type brake: Power on: brake is released, power off: brake is operating
ElectroMagnetic brake_Operating time: Max. 20ms
ElectroMagnetic brake_Releasing time: Max. 25ms
Absolute positon error: ±20'(0.33˚)
Lost motion: ±20'(0.33˚)
Weight: Approx. 1.4kg(approx. 1.3kg)
