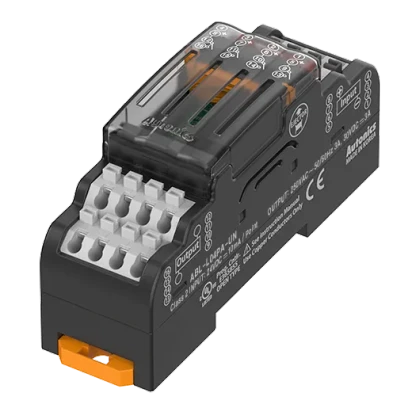

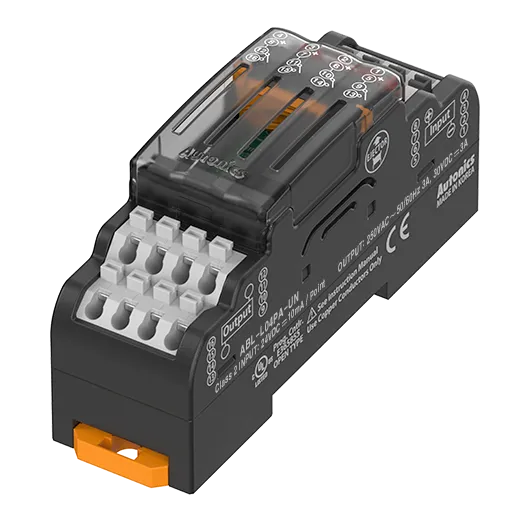

Autonics ABL Series ABL-L04PA-UY

List Price:

$71.00

/each

Product Description

Autonics I/o Terminal Blocks, model ABL-L04PA-UY, from the ABL Series product line.

Rated voltage: 24VDC @(=) ±10%
Rated load voltage & current: 250VAC~ 50/60Hz 3A, 30VDC @(=) 3A
Current consumption: ≤ 8mA
Applied relay: APAN3124 [MATSUSHITA(Panasonic)]
Number of relay points: 4-point
Terminal type: Screwless
Terminal pitch: 5.0mm
Indicator: Operation indicator: Blue LED
Applicable cable_Solid wire: Ø0.6 to Ø1.25mm(60℃ only)
Applicable cable_Stranded wire: AWG22-16(0.3~1.25mm²)(60℃ only)
Insulation resistance: ≥1,000MΩ (at 500VDC megger)
Dielectric strength_Between coil-contacts: 3,000VAC 50/60Hz for 1 minute
Dielectric strength_Between same contacts: 1,000VAC 50/60Hz for 1 minute
Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Material: Terminal block: Polyamide 66, Conducting plate: Brass, CASE&BASE: Poly phenylene sulfide
Accessories: Jumper bar: 1
Protection structure: IP20(IEC standard)
Weight: Approx. 125g(approx. 72g)
