Autonics ADS-A Series ADS-AE

List Price:

$149.00

/each

Product Description

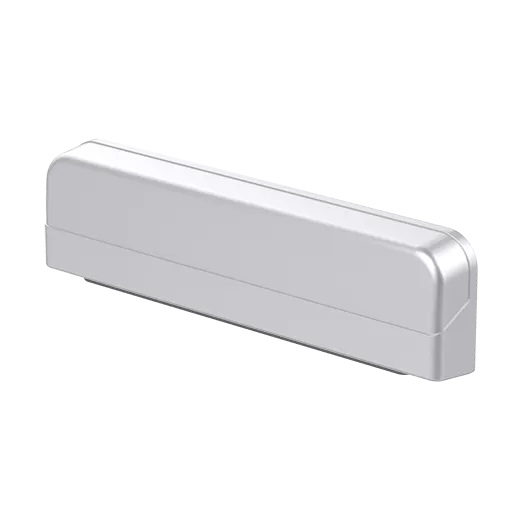

Autonics Door Sensors, model ADS-AE, from the ADS-A Series product line.

Sensing type: Diffuse reflective type
Mounting height: 2.0 to 2.7m
Light source: Infrared LED(850nm modulated)
Power supply: 12-24VAC~ ±10% 50/60Hz</br>12-24VDC @(=)
Power consumption: Max. 2VA(at 24VAC~)
Control output: Relay(SPST(1a))
Front sensing area: 7.5°, 14.5°, 21.5°, 28.5°(4-step setting)
Left/Right sensing area: Eliminating each (1, 2, 3 -area), (7, 8, 9 -area)
Environment_Ambient illumination: Sunlight/Incandescent lamp: Max. 3,000lx(receiver illumination)
Environment_Ambient temperature: -20℃ to 50℃, storage: -20 to 70℃
Protection structure: IP50
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Cover color: Silver
Output holding time: Time delay approx. 0.5sec
Holding time of stationary sensing: Selectable 2sec, 7sec, 15sec(selectable by holding time setting switch)
Interference prevention: H, L(selectable by interference prevention switch)
Connection type: Connector wire connection
Accessories: Cable: 2.5m, Mounting screw: 2, Mounting template
Material: Case: Acrylonitrile butadiene styrene, Lens: Acryl, Lens cover: Acryl
Weight: Approx. 320g
