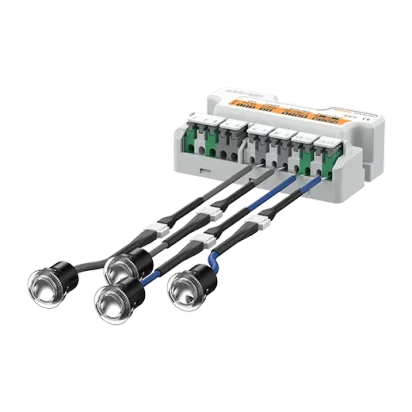

Autonics ADS-SE1/2 Series ADS-SE2

List Price:

$107.00

/each

Product Description

Autonics Door Sensors, model ADS-SE2, from the ADS-SE1/2 Series product line.

Sensing type: Through-beam type
Sensing distance: 0 to 10m
Light source: Infrared LED(850nm modulated)
Power supply: 12-24VAC~ ±10% 50/60Hz</br>12-24VDC @(=)
Current consumption and Power consumption: Current Consumption: Max. 2VA, Power Consumption: Max. 50mA
Control output: Relay(SPST(1a))
Sensing Channel: 2-channel
Sensitivity adjustment: Set by button
Sensor cable length: 5m
Environment_Ambient illumination: Sunlight: Max. 100,000lx(receiver illumination)
Environment_Ambient temperature: -20 to 55℃, storage: -25 to 60℃
Protection structure: IP30
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Response time: Approx. 50ms(from light OFF)
Output holding time: Approx. 500ms(from light ON)
Available sensor set: 2-channel
Sensor cable: Ø2.4mm, 1-wire, 5m(AWG26, core diameter: 0.16mm, number of cores: 7, insulator out diameter: Ø1.32mm)
Material: Sensor - Holder: Acrylonitrile butadiene styrene, Lens: Polymethyl methacrylate, Lens guide: Polycarbonate, Nut: Polycarbonate</br>Controller - Housing: Acrylonitrile butadiene styrene, Cover: Acrylonitrile butadiene styrene, Bolt: Steel chromium molybden
Accessories: Sensor 1set(ADS-SHP), Fixing bolt(M4×20) for controller: 2
Weight: Approx. 450g(approx. 300g)
