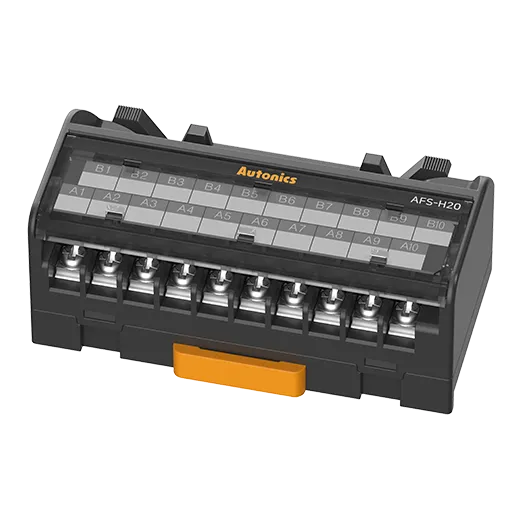

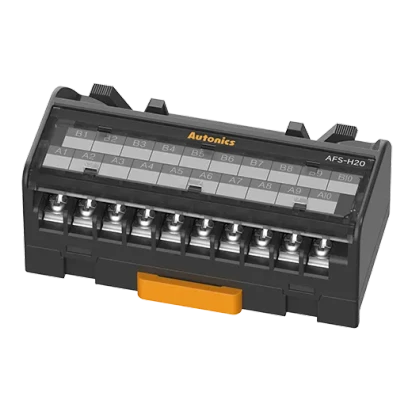

Autonics AFS Series AFS-H20

Autonics AFS Series AFS-H20

Part Number #

AUT1052665

Autonics AFS Series AFS-H20

List Price:

$39.00

/each

Product Description

Autonics I/o Terminal Blocks, model AFS-H20, from the AFS Series product line.

Specifications

Number of connector pins: 20-pin
Number of terminal: 20 EA
Terminal pitch: 7.0mm
Material: CASE & BASE: Modified Polyphenylene Oxide, TERMINAL PIN: Brass
Weight: Approx. 103g (approx. 71g)
Rated voltage: ≤125VDC @(=), 125VAC~ 50/60Hz
Rated current: ≤1A
Insulation resistance: ≥1,000MΩ (at 500VDC megger)
Dielectric strength: 2,700 VAC~ 50/60 Hz for 1 minute
Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

Autonics I/o Terminal Blocks, model AFS-H20, from the AFS Series product line.

Specifications

Number of connector pins: 20-pin
Number of terminal: 20 EA
Terminal pitch: 7.0mm
Material: CASE & BASE: Modified Polyphenylene Oxide, TERMINAL PIN: Brass
Weight: Approx. 103g (approx. 71g)
Rated voltage: ≤125VDC @(=), 125VAC~ 50/60Hz
Rated current: ≤1A
Insulation resistance: ≥1,000MΩ (at 500VDC megger)
Dielectric strength: 2,700 VAC~ 50/60 Hz for 1 minute
Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
