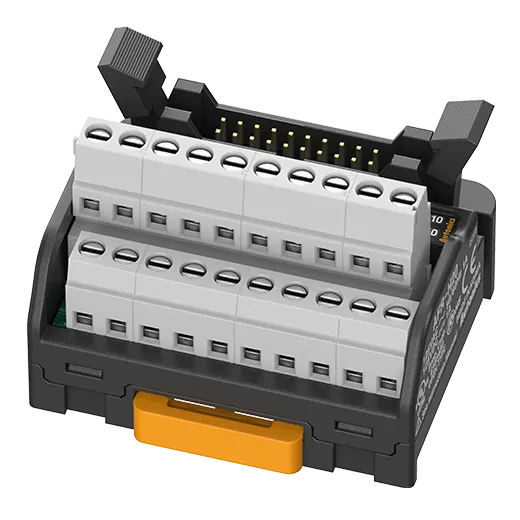

Autonics AFR Series AFR-H20

Autonics AFR Series AFR-H20

Part Number #

AUT1052664

Autonics AFR Series AFR-H20

List Price:

$47.00

/each

Product Description

Autonics I/o Terminal Blocks, model AFR-H20, from the AFR Series product line.

Specifications

Number of connector pins: 20-pin
Number of terminal: 20 EA
Terminal type: Rising Clamp
Terminal pitch: 5.0mm
Indicator: -
Material: CASE: Polycarbonate, BASE: Polycarbonate
Weight: Approx. 98.7g(approx. 61g)
Rated voltage: ≤125VDC @(=), 125VAC~ 50/60Hz
Rated current: ≤1A
Insulation resistance: ≥1,000MΩ (at 500VDC megger)
Dielectric strength: 2,700 VAC~ 50/60 Hz for 1 minute
Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP20(IEC standard)
