Autonics E60H Series E60H20-100-3-V-24-C
Part Number #
AUT1050855

Autonics E60H Series E60H20-100-3-V-24-C

List Price:
$307.00
/each
Product Description

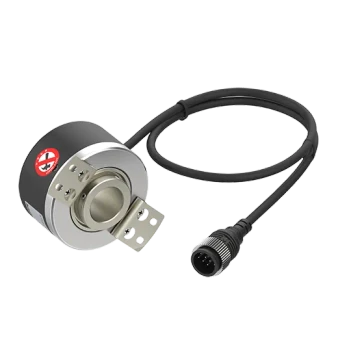

Autonics Rotary Encoders, model E60H20-100-3-V-24-C, from the E60H Series product line.

Specifications

  • Shaft inner diameter: Ø20mm
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 6000rpm
  • Starting torque: Max. 150gf.cm(max. 0.0147N.m)
  • Resolution: 100P/R
  • Output phase: A, B, Z
  • Control output: Voltage
  • Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Radial cable connector type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Bracket: 2
  • Weight: Approx. 391g(approx. 330g)

Downloadable Materials

Write a Review

Out of stock

Request a Quote
  • CAD Model
  • Specifications
Brand:

Autonics Rotary Encoders, model E60H20-100-3-V-24-C, from the E60H Series product line.

Specifications

  • Shaft inner diameter: Ø20mm
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 6000rpm
  • Starting torque: Max. 150gf.cm(max. 0.0147N.m)
  • Resolution: 100P/R
  • Output phase: A, B, Z
  • Control output: Voltage
  • Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Radial cable connector type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Bracket: 2
  • Weight: Approx. 391g(approx. 330g)

Downloadable Materials
