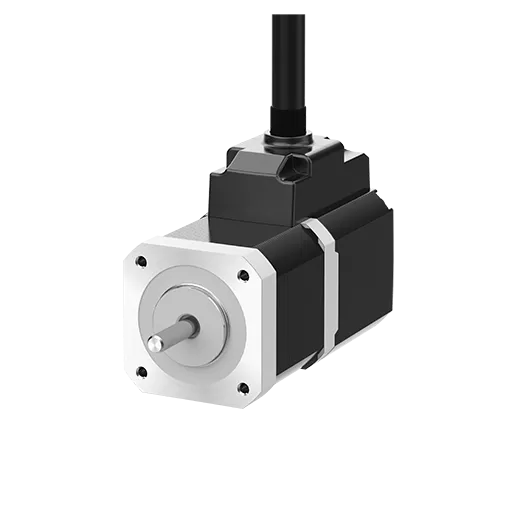

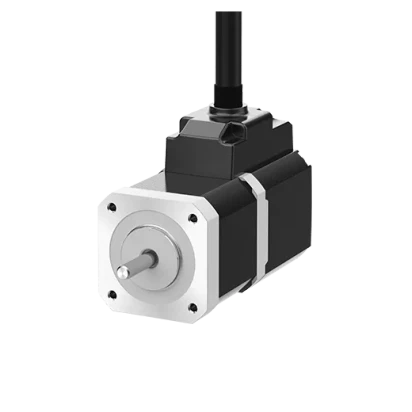

Autonics Ai-M Series Ai-M-42LA-V2

Autonics Ai-M Series Ai-M-42LA-V2

Part Number #

AUT1052753

Autonics Ai-M Series Ai-M-42LA-V2

List Price:

$315.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model Ai-M-42LA-V2, from the Ai-M Series product line.

Specifications

Max. holding torque: 0.51 N m
Rotor Moment Of Inertia: 72×10@(^-7)kg.m²
Rated current: 1.7A/Phase
Basic Step Angle [FULL/HALF]: 1.8º/0.9º
Winding Resistance: 1.9Ω
Inductance: 4.2 mH/Phase
Unit weight (packaged weight): ≈ 0.37 kg (≈ 0.57 kg)
Motor length: 47.5mm
Shaft type: Single shaft
Operation method: Bipolar
Resolution: 10,000PPR(2,500PPR×4-multiply)
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Max. response frequency: 300kHz
Protection structure: IP30
Motor phase: 2-Phase
Number Of Axes: 1-axis
Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
