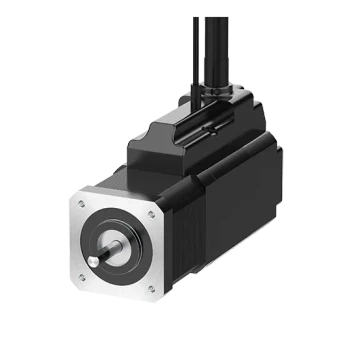

Autonics Ai-M-G/R Series Ai-M-42MA-G7.2

List Price:

$557.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model Ai-M-42MA-G7.2, from the Ai-M-G/R Series product line.

Motor type: Built-in gear type
Reduction ratio: 0.000777778
Max. holding torque: 2N.m
Rotor Moment Of Inertia: 54×10@(^-7) kg.m²
Rated current: 1.7A/Phase
Allowable torque: 1.5N.m
Standard step angle: 0.25 °
Backlash: 35min (0.58 °)
Winding Resistance: 1.85Ω
Inductance: 3.5 mH/Phase
Weight: ≈ 0.58 kg (≈ 0.70kg)
Motor phase: 2-Phase
Motor_Operation Method: Bipolar
Insulation class: B type (130 ℃)
Insulation resistance: ≥ 100 MΩ (between motor coil-case 500 VDC@(=) megger)
Dielectric strength: 500 VAC~ 50/60 Hz for 1 min (between motor coil-case)
Vibration: 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours
Shock: ≲ 50 G
Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
Protection structure: IP30(IEC Standard)
Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
Current consumption: ≤ 50 mA (no load)
Resolution: 10,000PPR(2,500PPR×4-multiply)
Control output: Line Driver
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Max. response frequency: 300kHz
