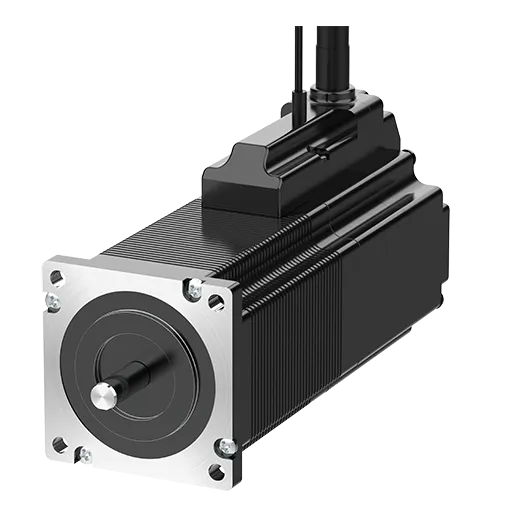

Autonics Ai-M-B Series Ai-M-60MA-B

Autonics Ai-M-B Series Ai-M-60MA-B

Part Number #

AUT1052767

Autonics Ai-M-B Series Ai-M-60MA-B

List Price:

$667.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model Ai-M-60MA-B, from the Ai-M-B Series product line.

Specifications

Basic Step Angle [FULL/HALF]: 1.8º/0.9º
Max. holding torque: 22.43kgf.cm
Rotor Moment Of Inertia: 490g·cm²
Winding Resistance: 1.23Ω
Rated current: 3.5A/Phase
Motor length: 137.6mm
Shaft type: Single shaft
Operation method: Bipolar constant current Drive
Resolution: 10,000PPR(2,500PPR×4-multiply)
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Max. response frequency: 300kHz
Protection structure: IP30
Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
Weight: Approx. 1.90kg (approx. 1.74kg)
