Autonics AiC Series AiC-35SB

List Price:

$904.00

/each

Product Description

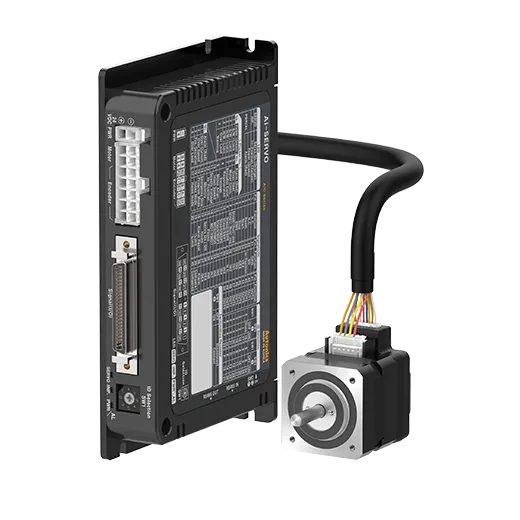

Autonics 2-phase Closed Loop Systems(inc), model AiC-35SB, from the AiC Series product line.

Driver_Comm. specifications: Modbus RTU
Driver_Power supply: 24VDC @(=)
Driver_Max. Power: ≤ 60 W
Driver_Max. Run Current: 1.2A/Phase
Driver_Resolution: 500(factory default), 1000, 1600, 2000, 3600, 5000, 6400, 7200, 10000, 16000 [Pulse/Rev]
Motor_Rotor Moment Of Inertia: 8×10@(^-7) kg · m²
Driver_Operation Method: Bipolar constant current Drive
Driver_Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
Driver_Protection structure: IP20(IEC standard)
Driver_Unit weight(packaged): ≈ 300 g (≈ 460 g)
Motor_Max. Holding Torque: 0.07 N m
Motor_Rated Current: 1.2A/Phase
Motor_Basic Step Angle [FULL/HALF]: 1.8º/0.9º
Motor_Winding Resistance: 2.1Ω
Motor phase: 2-Phase
Motor_Operation Method: Bipolar
Motor_Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Motor_Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
Motor_Protection structure: IP30
Motor_Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Motor_Max. response frequency: 1,000kHz
Motor_Weight: Approx. 0.278g (approx. 0.180kg)
Motor_Motor length: 41.5mm
Motor_Resolution: 16,000PPR(4,000PPR×4-multiply)
