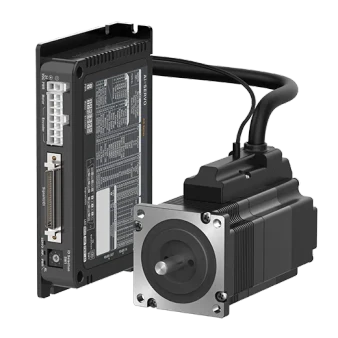

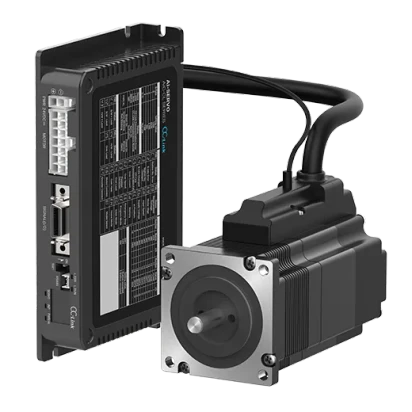

Autonics AiC-CL Series AiC-60SA-B-CL

List Price:

$1,366.00

/each

Product Description

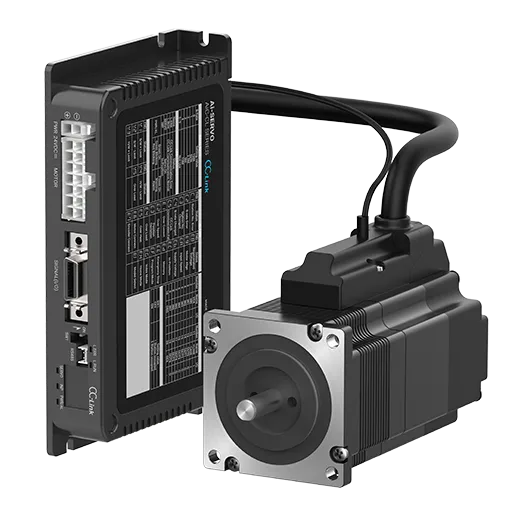

Autonics 2-phase Closed Loop Systems(inc), model AiC-60SA-B-CL, from the AiC-CL Series product line.

Driver_Comm. specifications: CC-Link
Driver_Power supply: 24VDC @(=)
Driver_Max. Power: ≤ 240 W
Driver_Max. Run Current: 3.5A/Phase
Driver_Resolution: 500 (factory default), 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR
Motor_Rotor Moment Of Inertia: 240×10@(^-7) kg · m²
Driver_Operation Method: Bipolar constant current Drive
Driver_Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
Driver_Protection structure: IP20(IEC standard)
Driver_Unit weight(packaged): ≈ 320 g (≈ 470 g)
Motor_Max. Holding Torque: 1.1 N m
Motor_Rated Current: 3.5A/Phase
Motor_Basic Step Angle [FULL/HALF]: 1.8º/0.9º
Motor_Winding Resistance: 1Ω
Motor phase: 2-Phase
Motor_Operation Method: Bipolar
Motor_Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Motor_Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
Motor_Protection structure: IP30
Motor_Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Motor_Max. response frequency: 300kHz
Motor_Weight: Approx. 1.53kg (approx. 1.36kg)
Motor_Motor length: 116.7mm
Motor_Resolution: 10,000PPR(2,500PPR×4-multiply)
