Autonics AiC-D-CL Series AiC-D-60SA-B-CL

List Price:

$722.00

/each

Product Description

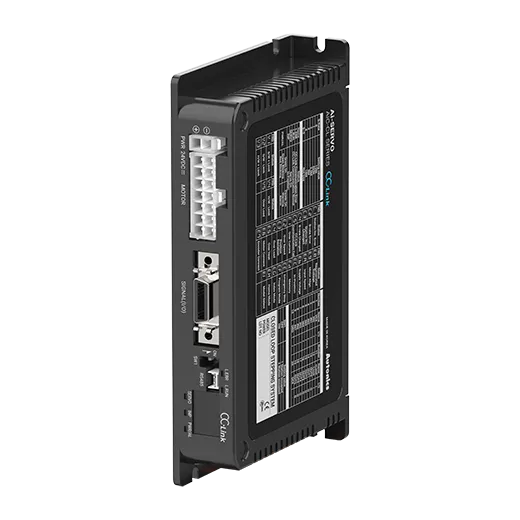

Autonics 2-phase Closed Loop Systems(inc), model AiC-D-60SA-B-CL, from the AiC-D-CL Series product line.

Driver_Comm. specifications: CC-Link
Driver_Power supply: 24VDC @(=)
Driver_Max. Power: ≤ 240 W
Driver_Max. Run Current: 3.5A/Phase
Driver_Resolution: 500 (factory default), 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR
Driver_Operation Method: Bipolar constant current Drive
Driver_Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
Driver_Protection structure: IP20(IEC standard)
Driver_Unit weight(packaged): ≈ 320 g (≈ 470 g)
Motor phase: -
Motor_Environment_Ambient temperature: -
