R2000-8N-W-LT8X2

List Price:

$23.90

/each

Product Description

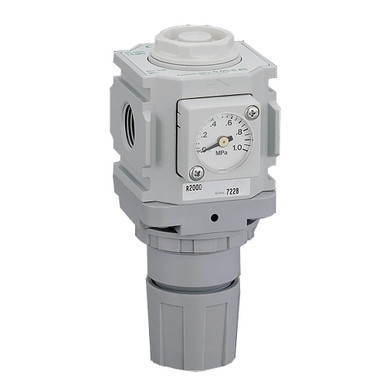

CKD compact pneumatic regulator with an embedded pressure gauge for controlling downstream compressed-air pressure. Series options cover port sizes from 1/8 to 1 inch.

Features

Port Size/Thread: NPT1/4
Pressure Range: 0.05-0.35MPa
Pressure Relief Option: With relief mechanism
Pressure Gauge Option: Pressure gauge ready (gauge port (1/4) open)
Flow Direction: Standard flow (left -> right), knob upward
Display Unit: PSI, deg F display

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

CKD compact pneumatic regulator with an embedded pressure gauge for controlling downstream compressed-air pressure. Series options cover port sizes from 1/8 to 1 inch.
