Autonics AiS-D Series AiS-D-42LA-B
Part Number #
AUT1052788

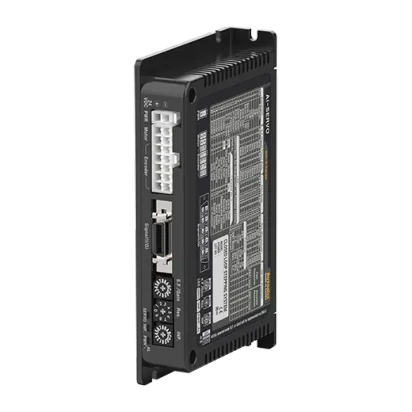

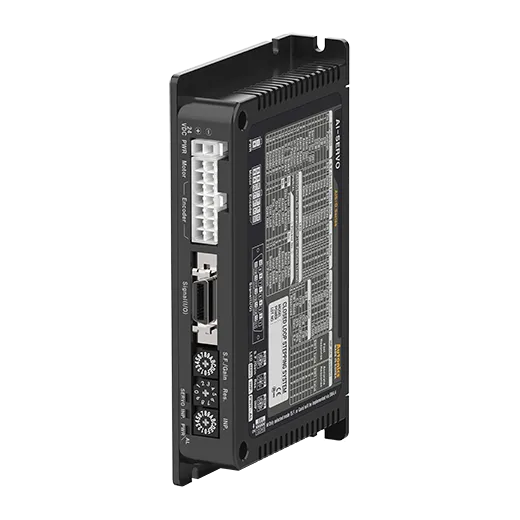

Autonics AiS-D Series AiS-D-42LA-B

List Price:
$414.00
/each
Product Description

Autonics 2-phase Closed Loop Systems(inc), model AiS-D-42LA-B, from the AiS-D Series product line.

Specifications

  • Driver_Operation Method: Bipolar constant current Drive
  • Driver_Applied Motor: Frame size 42mm, shaft type, built-in brake type 2-phase closed-loop stepper motor(Ai-M-42LA-B)
  • Driver_Resolution: 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR(SW2)
  • Driver_Power supply: 24VDC @(=)
  • Driver_Max. Run Current: 1.7A/Phase
  • Driver_Max. Power consumption: 60W
  • Driver_Output: In-Position, Alarm Out, Brake, Encoder signal(A, @(A^), B, @(B^), Z, @(Z^))
  • Driver_Protection structure: IP20
  • Driver_Approval: @(CE)
  • Driver_Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
  • Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
  • Driver_Weight: Approx. 400g(approx. 290g)

Downloadable Materials

Write a Review

Out of stock

Request a Quote
  • CAD Model
  • Specifications
Brand:

Autonics 2-phase Closed Loop Systems(inc), model AiS-D-42LA-B, from the AiS-D Series product line.

Specifications

  • Driver_Operation Method: Bipolar constant current Drive
  • Driver_Applied Motor: Frame size 42mm, shaft type, built-in brake type 2-phase closed-loop stepper motor(Ai-M-42LA-B)
  • Driver_Resolution: 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR(SW2)
  • Driver_Power supply: 24VDC @(=)
  • Driver_Max. Run Current: 1.7A/Phase
  • Driver_Max. Power consumption: 60W
  • Driver_Output: In-Position, Alarm Out, Brake, Encoder signal(A, @(A^), B, @(B^), Z, @(Z^))
  • Driver_Protection structure: IP20
  • Driver_Approval: @(CE)
  • Driver_Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
  • Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
  • Driver_Weight: Approx. 400g(approx. 290g)
