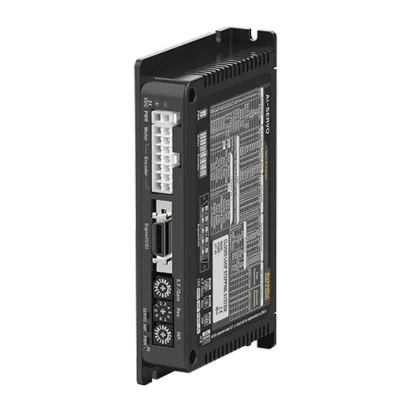

Autonics AiS-D Series AiS-D-60MA

List Price:

$433.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model AiS-D-60MA, from the AiS-D Series product line.

Driver_Operation Method: Bipolar constant current Drive
Driver_Applied Motor: Frame size 60mm 2-phase closed loop stepper motor
Driver_Resolution: 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR (selectable by SW2)
Driver_Power supply: 24VDC @(=)
Driver_Max. Run Current: 3.5A/Phase
Driver_Max. Power consumption: 240W
Driver_Output: In-Position, Alarm Out, Encoder signal (A, @(A^), B, @(B^), Z, @(Z^))
Driver_Protection structure: IP20
Driver_Approval: @(CE)
Motor_Basic Step Angle [FULL/HALF]: -
Motor_Max. Holding Torque: -
Motor_Rotor Moment Of Inertia: -
Motor_Winding Resistance: -
Motor_Rated Current: -
Motor_Motor length: -
Motor_Shaft Type: -
Motor_Operation Method: -
Motor_Resolution: -
Motor_Output phase: -
Motor_Max. response frequency: -
Motor_Protection structure: -
Motor_Approval: -
Motor phase: 2-Phase
Driver_Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
Driver_Weight: Approx. 400g(approx. 290g)
Motor_Number Of Axes: 1-axis
Motor_Environment_Ambient temperature: -
Motor_Environment_Ambient humidity: -
Motor_Weight: -
