Autonics AiSA-D Series AiSA-D-60MA-B
Part Number #
AUT1052829

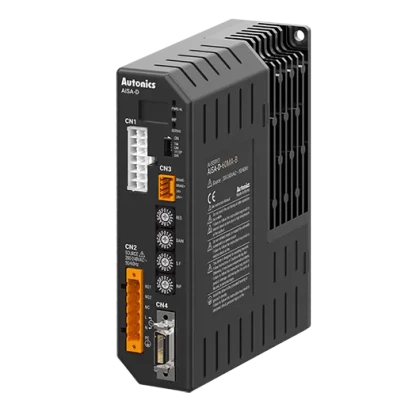

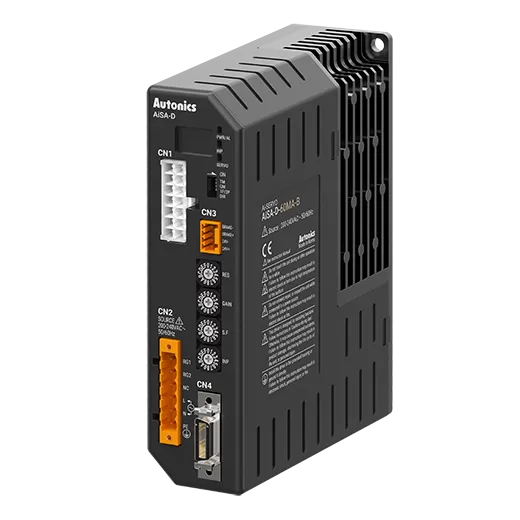

Autonics AiSA-D Series AiSA-D-60MA-B

List Price:
$538.00
/each
Product Description

Autonics 2-phase Closed Loop Systems(inc), model AiSA-D-60MA-B, from the AiSA-D Series product line.

Specifications

  • Driver_Operation Method: Bipolar constant current Drive
  • Driver_Applied Motor: Frame size 60mm 2-phase closed loop stepper motor
  • Driver_Resolution: 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR(SW2)
  • Driver_Power supply: 200-240VAC~50/60Hz
  • Driver_Max. Run Current: 2A/Phase
  • Driver_Output: In-Position, Alarm Out, Encoder signal (A, @(A^), B, @(B^), Z, @(Z^))
  • Driver_Protection structure: IP20
  • Driver_Approval: @(CE) @(ROHS)
  • Driver_Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
  • Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
  • Driver_Weight: Approx. 1,020 g (approx. 780 g)

Downloadable Materials

Write a Review

Out of stock

Request a Quote
  • CAD Model
  • Specifications
Brand:

Autonics 2-phase Closed Loop Systems(inc), model AiSA-D-60MA-B, from the AiSA-D Series product line.

Specifications

  • Driver_Operation Method: Bipolar constant current Drive
  • Driver_Applied Motor: Frame size 60mm 2-phase closed loop stepper motor
  • Driver_Resolution: 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR(SW2)
  • Driver_Power supply: 200-240VAC~50/60Hz
  • Driver_Max. Run Current: 2A/Phase
  • Driver_Output: In-Position, Alarm Out, Encoder signal (A, @(A^), B, @(B^), Z, @(Z^))
  • Driver_Protection structure: IP20
  • Driver_Approval: @(CE) @(ROHS)
  • Driver_Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
  • Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
  • Driver_Weight: Approx. 1,020 g (approx. 780 g)

Downloadable Materials
