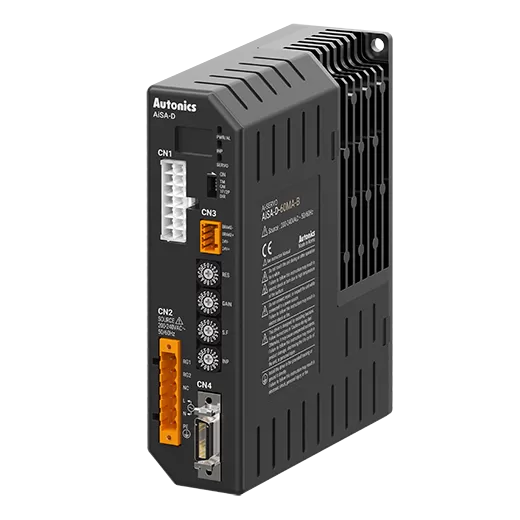

Autonics AiSA-D Series AiSA-D-86MA-B

List Price:

$722.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model AiSA-D-86MA-B, from the AiSA-D Series product line.

Driver_Operation Method: Bipolar constant current Drive
Driver_Applied Motor: Frame size 60mm 2-phase closed loop stepper motor
Driver_Resolution: 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR(SW2)
Driver_Power supply: 200-240VAC~50/60Hz
Driver_Max. Run Current: 2A/Phase
Driver_Output: In-Position, Alarm Out, Encoder signal (A, @(A^), B, @(B^), Z, @(Z^))
Driver_Protection structure: IP20
Driver_Approval: @(CE) @(ROHS)
Driver_Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
Driver_Weight: Approx. 1,020 g (approx. 780 g)

Write a Review

Brand:

Autonics 2-phase Closed Loop Systems(inc), model AiSA-D-86MA-B, from the AiSA-D Series product line.

Driver_Operation Method: Bipolar constant current Drive
Driver_Applied Motor: Frame size 60mm 2-phase closed loop stepper motor
Driver_Resolution: 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR(SW2)
Driver_Power supply: 200-240VAC~50/60Hz
Driver_Max. Run Current: 2A/Phase
Driver_Output: In-Position, Alarm Out, Encoder signal (A, @(A^), B, @(B^), Z, @(Z^))
Driver_Protection structure: IP20
Driver_Approval: @(CE) @(ROHS)
Driver_Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
Driver_Weight: Approx. 1,020 g (approx. 780 g)
