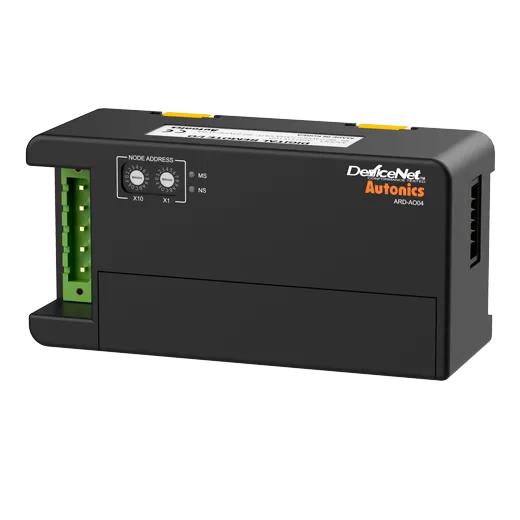

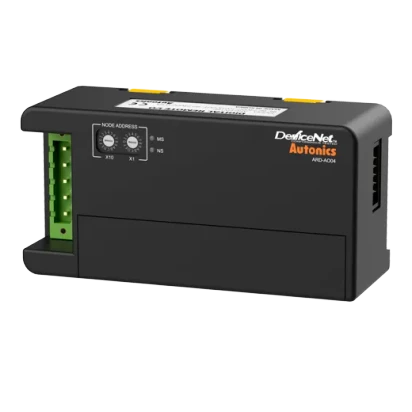

Autonics ARD-A Series ARD-AO04

List Price:

$485.00

/each

Product Description

Autonics Remote I/o Systems, model ARD-AO04, from the ARD-A Series product line.

Network: DeviceNet
Type: Analog
Number Of I/Os_Input: -
Number Of I/Os_Output: 4-CH(DC voltage 2-CH, DC current 2-CH)
I/O specification: Voltage: 0-10VDC @(=), -10-10VDC @(=), 0-5VDC @(=), 1-5VDC @(=), -5-5VDC @(=)(load resistance: max. 1kΩ)</br>Current: DC4-20mA, DC0-20mA(load resistance: 600Ω)
Module type: Basic unit
Power supply: 24VDC @(=)
Protection structure: IP20
Material: Front case, Body Case: PC
Insulation type: I/O and inner circuit: non-insulated, DeviceNet and inner circuit: insulated, Power and DeviceNet: insulated
Environment_Ambient temperature: -10 to 50℃, storage: -25 to 75℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 210g (approx. 145g)

Write a Review

Brand:

Autonics Remote I/o Systems, model ARD-AO04, from the ARD-A Series product line.

Network: DeviceNet
Type: Analog
Number Of I/Os_Input: -
Number Of I/Os_Output: 4-CH(DC voltage 2-CH, DC current 2-CH)
I/O specification: Voltage: 0-10VDC @(=), -10-10VDC @(=), 0-5VDC @(=), 1-5VDC @(=), -5-5VDC @(=)(load resistance: max. 1kΩ)</br>Current: DC4-20mA, DC0-20mA(load resistance: 600Ω)
Module type: Basic unit
Power supply: 24VDC @(=)
Protection structure: IP20
Material: Front case, Body Case: PC
Insulation type: I/O and inner circuit: non-insulated, DeviceNet and inner circuit: insulated, Power and DeviceNet: insulated
Environment_Ambient temperature: -10 to 50℃, storage: -25 to 75℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 210g (approx. 145g)
