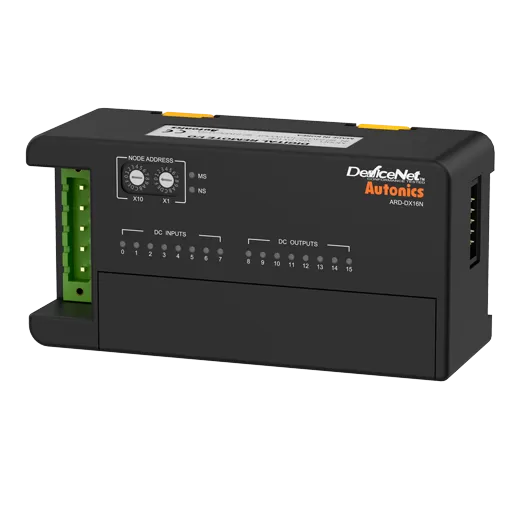

Autonics ARD-D Series ARD-DX16N

List Price:

$227.00

/each

Product Description

Autonics Remote I/o Systems, model ARD-DX16N, from the ARD-D Series product line.

Network: DeviceNet
Type: Digital
Number Of I/Os_Input: 8-point (NPN)
Number Of I/Os_Output: 8-point (NPN)
I/O specification: Voltage: 10-28VDC @(=) (voltage drop: max. 0.5V)</br>Current: Input 10mA, Output 0.5A/point(leakage current:max. 0.5mA)
Module type: Basic unit
Power supply: 24VDC @(=)
Protection structure: IP20
Material: Front case, Body Case: PC, Rubber cap: NBR
Insulation type: I/O and inner circuit: insulated, DeviceNet and inner circuit: non-insulated, Power and DeviceNet: non-insulated
Environment_Ambient temperature: -10 to 50℃, storage: -25 to 75℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 140g
