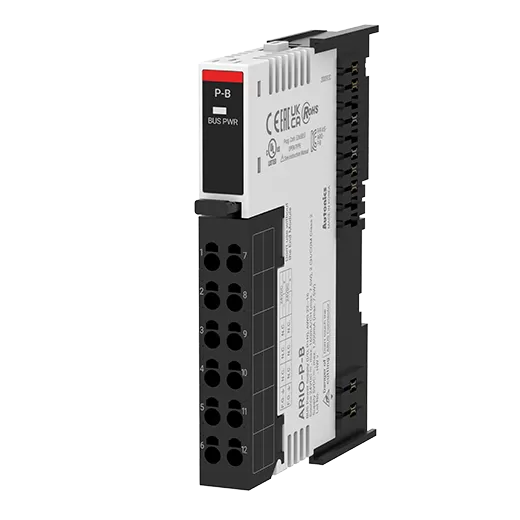

Autonics ARIO Series ARIO-P-B

List Price:

$105.00

/each

Product Description

Autonics Remote I/o Systems, model ARIO-P-B, from the ARIO Series product line.

Power supply_ABUS(external consumption): 24VDC@(=), max. 320mA(max. 7.5W, max. 160mA/CH, 2CH/COM)
Power supply_ABUS(internal supply): 5VDC@(=), max. 1,500mA (max. 7.5W)
Mounting type: DIN rail mounting
Insulation resistance: 100MΩ(at 500VDC megger)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 70℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP20(IEC standard)
Material: Terminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene
Weight: Approx. 108g (approx. 75g)

Write a Review

Brand:

Autonics Remote I/o Systems, model ARIO-P-B, from the ARIO Series product line.

Power supply_ABUS(external consumption): 24VDC@(=), max. 320mA(max. 7.5W, max. 160mA/CH, 2CH/COM)
Power supply_ABUS(internal supply): 5VDC@(=), max. 1,500mA (max. 7.5W)
Mounting type: DIN rail mounting
Insulation resistance: 100MΩ(at 500VDC megger)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 70℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP20(IEC standard)
Material: Terminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene
Weight: Approx. 108g (approx. 75g)
