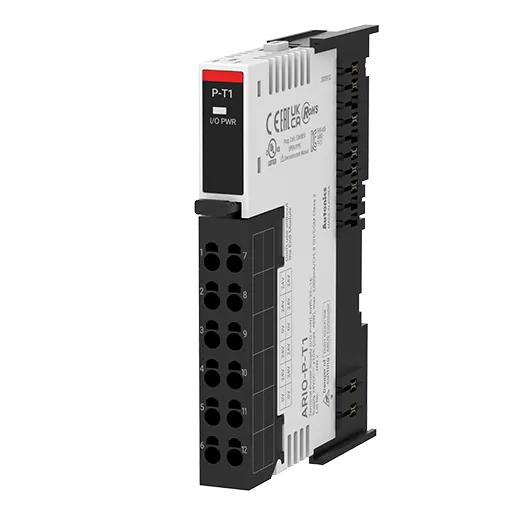

Autonics ARIO Series ARIO-P-T1

List Price:

$89.00

/each

Product Description

Autonics Remote I/o Systems, model ARIO-P-T1, from the ARIO Series product line.

Input_Voltage: -
Input_Max. current: -
Output_Voltage: 24VDC@(=)±10% (max. 48W)
Output_Max. current: Max. 2,000mA/CH,8CH/COM
No. of I/O supply power: 24V: 8, 0V: 4
Mounting type: DIN rail mounting
Insulation resistance: 100MΩ(at 500VDC megger)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 70℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP20(IEC standard)
Material: Terminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene
Weight: Approx. 108g (approx. 75g)
