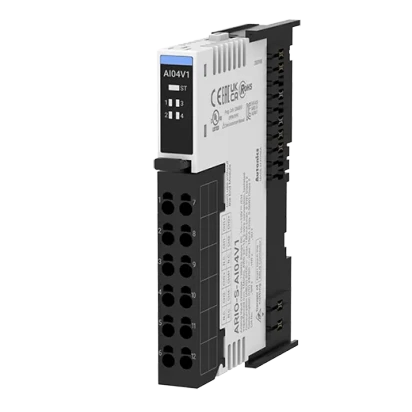

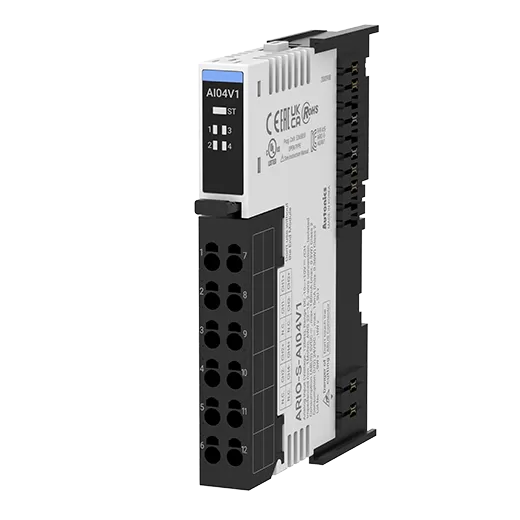

Autonics ARIO Series ARIO-S-AI04V1

List Price:

$323.00

/each

Product Description

Autonics Remote I/o Systems, model ARIO-S-AI04V1, from the ARIO Series product line.

I/O method: Voltage input
I/O range: -10~10VDC@(=)
Accuracy_Room temp.: ±0.3% F.S.
Accuracy_Out of room temp.: ±0.6% F.S.
Input impedance: Min. 1MΩ
Load resistance: -
Status indicator ON conditions: Below -1V or over 1V
Resolution: 12bit
Power consumption_ABUS: 5VDC@(=), max. 180mA (max. 0.9W)
Power consumpti_I/O: 24VDC@(=), max. 15mA (max. 0.36W)
Mounting type: DIN rail mounting
Insulation resistance: 100MΩ (at 500VDC@(=) megger)</br>I/O to inner circuit: photocoupler insulated, between channels: non-insulated
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 70℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP20(IEC standard)
Material: Terminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene
Weight: Approx. 108g (approx. 75g)
