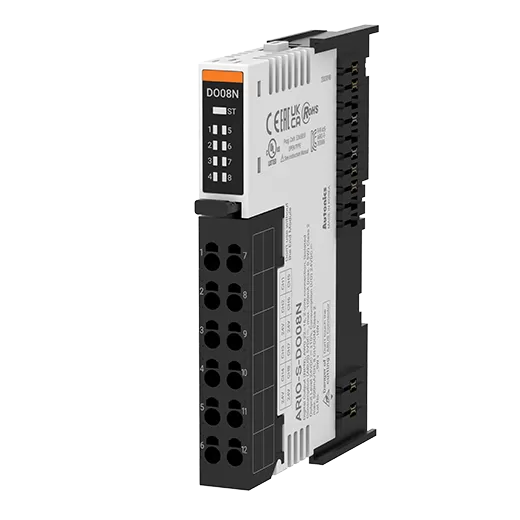

Autonics ARIO Series ARIO-S-DO08N

List Price:

$133.00

/each

Product Description

Autonics Remote I/o Systems, model ARIO-S-DO08N, from the ARIO Series product line.

I/O common: NPN
Input Voltage: -
Output leakage voltage: Max. 1.2VDC@(=)
I/O signal level: 24VDC@(=)±10%
I/O current consumption_4CH: -
I/O current consumption_8CH: -
Rated output current_4CH: Max. 500mA/CH, 4CH/COM
Rated output current_8CH: Max. 500mA/CH, 8CH/COM
On delay time: Max. 0.5ms
Off delay time: Max. 1.5ms
Power consumption_ABUS: 5VDC@(=), max. 100mA (max. 0.5W)
Mounting type: DIN rail mounting
Insulation resistance: 100MΩ (at 500VDC@(=) megger)</br>I/O to inner circuit: photocoupler insulated, between channels: non-insulated
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 70℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP20(IEC standard)
Material: Terminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene
Weight: Approx. 108g (approx. 75g)
