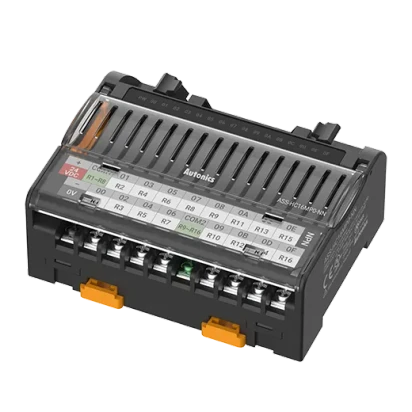

Autonics ASS Series ASS-HC16MP0-NN

List Price:

$364.00

/each

Product Description

Autonics I/o Terminal Blocks, model ASS-HC16MP0-NN, from the ASS Series product line.

Applied SSR: AQZ202D(Panasonic)
Rated voltage: ≤ 24 VDC@(=)±10 %
Current consumption: ≤ 10.4 mA or ≤ 13.1 mA
Number of connector pins: 20
Number of SSR: 16
Terminal type: Screw
Terminal pitch: 7.62 mm
Indicator: Power indicator: red, operating indicator: blue
Applicable cable_Solid wire: Ø 0.3 to Ø 1.2 mm
Applicable cable_Stranded wire: AWG 22-16 (0.30 to 1.25 mm²)
Insulation resistance: ≥1,000MΩ (at 500VDC megger)
Dielectric strength_Between coil-contacts: 2,500VAC 50/60Hz for 1 minute
Dielectric strength_Between same contacts: 1,000VAC 50/60Hz for 1 minute
Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Material: CASE: MPPO, BASE: PA66 (G25 %), COVER: PC, terminal pin: brass, Ni-plating
Protection structure: -
Weight: ≈ 185 g (≈ 232 g)
