Autonics AT8PSN/AT8PMN Series AT8PMN

Autonics AT8PSN/AT8PMN Series AT8PMN

Part Number #

AUT1053361

Autonics AT8PSN/AT8PMN Series AT8PMN

List Price:

$71.00

/each

Product Description

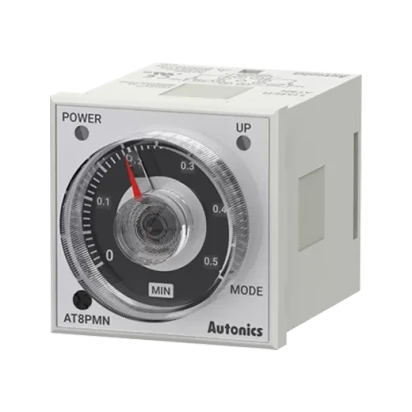

Autonics Timers, model AT8PMN, from the AT8PSN/AT8PMN Series product line.

Specifications

Operation method: Time setting
Output Operation: POWER OFF DELAY
Time operation: POWER OFF START
Terminal: 8-pin plug
Power supply: 200-240VAC~50/60Hz
Setting range: 0.05 to 0.5 sec, 0.1 to 1 sec, 0.5 to 5 sec, 1 to 10 sec
Signal Input Method: -
Control output: Time-limit SPDT (1c): 2
Protection structure: -
Accessories: Bracket
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 100g

Downloadable Materials
