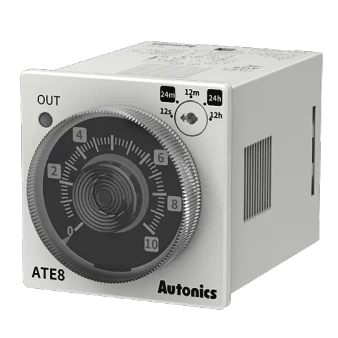

Autonics ATE8 Series ATE8-41E

List Price:

$23.00

/each

Product Description

Autonics Timers, model ATE8-41E, from the ATE8 Series product line.

Operation method: Time setting
Output Operation: POWER ON DELAY
Time operation: POWER ON START
Terminal: 8-pin plug
Power supply: 100-240VAC~50/60Hz, 24-240VDC @(=)
Setting range: 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour
Control output: Time-limit SPDT (1c): 1, Instantaneous SPDT (1c): 1
Protection structure: IP40(front panel)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 122.2g(Approx. 75g)

Write a Review

Brand:

Autonics Timers, model ATE8-41E, from the ATE8 Series product line.

Operation method: Time setting
Output Operation: POWER ON DELAY
Time operation: POWER ON START
Terminal: 8-pin plug
Power supply: 100-240VAC~50/60Hz, 24-240VDC @(=)
Setting range: 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour
Control output: Time-limit SPDT (1c): 1, Instantaneous SPDT (1c): 1
Protection structure: IP40(front panel)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 122.2g(Approx. 75g)
